RAP-00RF19-3P1N0
ActiveMcGill Microwave Systems

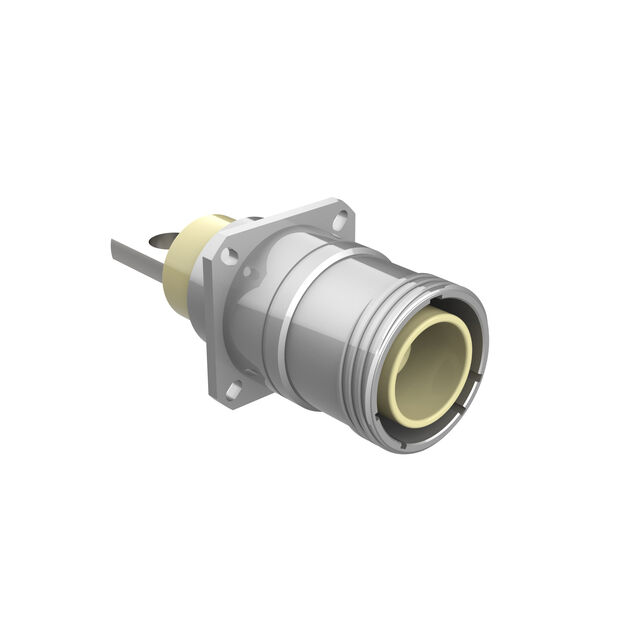

RAPTOR SQ FLANGE REC SIZE 19
RAP-00RF19-3P1N0
ActiveMcGill Microwave Systems
RAPTOR SQ FLANGE REC SIZE 19
Description
General part information
RAP-00RF19-3P1N0
1 Position Circular Connector Receptacle, Male Pins Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | RAP-00RF19-3P1N0 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper |
| Current Rating | 450 A |
| Fastening Type | Threaded |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Positions | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert | 19 |
| Shell Size - Insert | 19 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating (AC) | 2500 VAC |
| Voltage Rating (DC) | 3500 VDC |
