3-2371437-8
ActiveTE Connectivity AMP Connectors

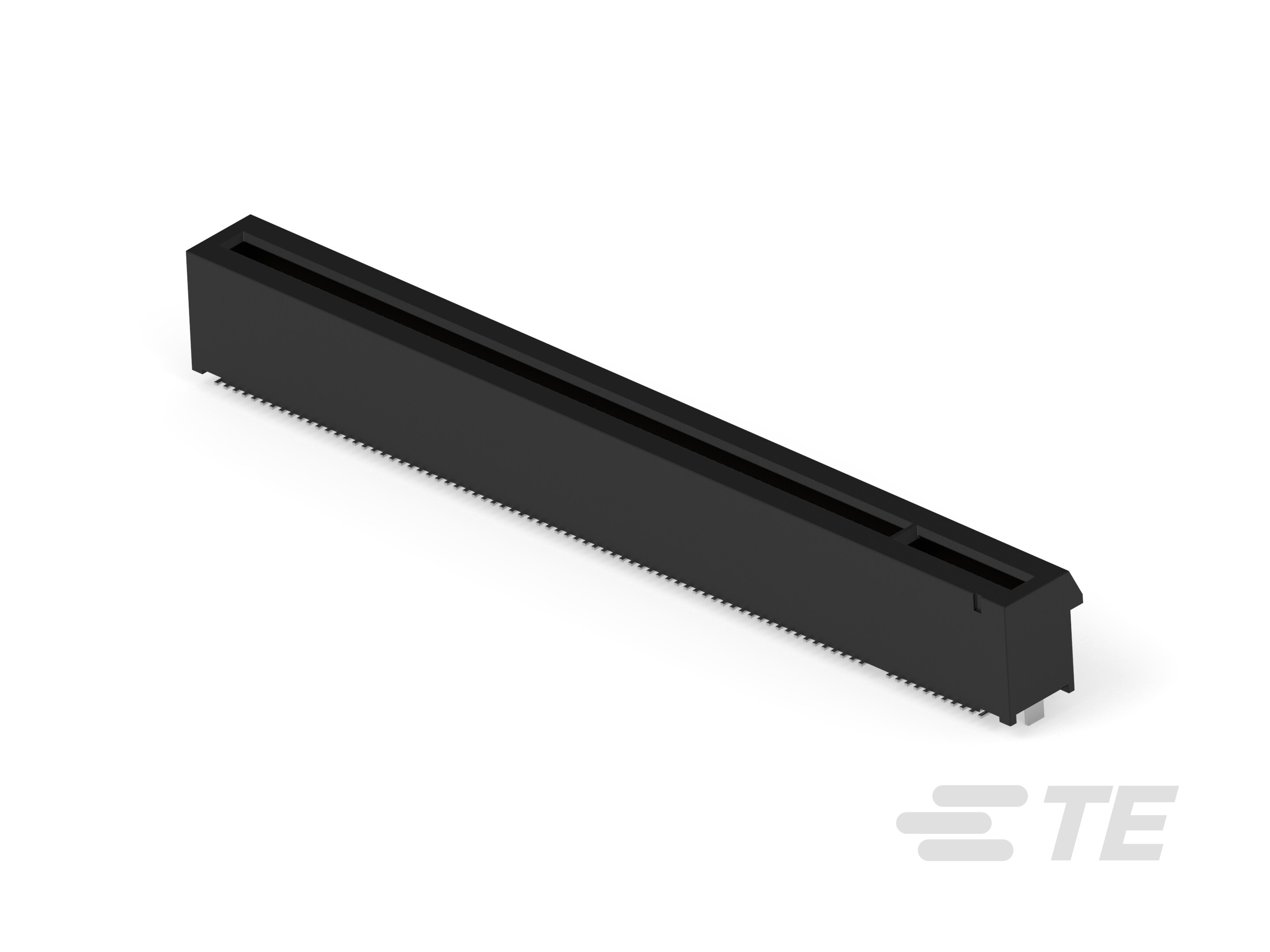

PCIE G5 CON,SMT,1.5TAB,164P,GF,F-ML,HT
3-2371437-8
ActiveTE Connectivity AMP Connectors
PCIE G5 CON,SMT,1.5TAB,164P,GF,F-ML,HT
Description
General part information
3-2371437-8
Board-to-Board, 164 Position, 1 mm [.04 in] Centerline, Vertical, Black, 11.25 mm [.44 in] Height, 8.2 mm [.32 in] Width, PCI & PCI Express Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2371437-8 |
|---|---|
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | GEN5, Locking Ramp, Solder Retention, Board Guide |
| Gender | Female |
| Mounting Type | Surface Mount |
| Number of Bay | 71 |
| Number of Positions | 11, 164 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Read Out | Dual |
| Termination | Solder |
