Description
General part information
XQEACY-00-0000-000000C02

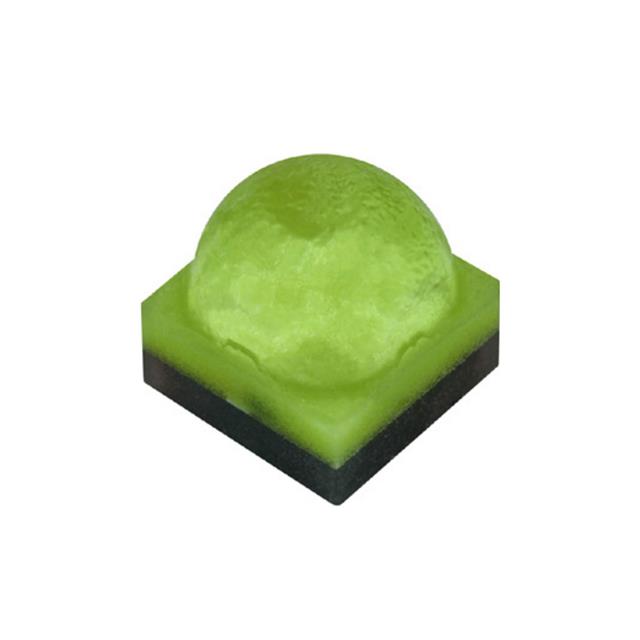

LED Lighting Color XLamp® XQ-E Cyan 498nm (490nm ~ 505nm) 0606 (1616 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | XQEACY-00-0000-000000C02 |
|---|---|
| Color | Cyan |
| Current - Max | 1.5 A |
| Current - Test | 350 mA |
| Height - Seated (Max) | 0.068 in |
| Lumens/Watt | 112 lm/W |
| Luminous Flux | 104 lm |
| Luminous Flux (Maximum) | 107 lm |
| Luminous Flux (Minimum) | 100 lm |
| Mounting Type | Surface Mount |
| Package / Case | 0606 (1616 Metric) |
| Package Diameter | 1616 mm |
| Package Name | 0606 |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.063 in |
| Temperature - Test | 25 °C |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.65 V |
| Wavelength | 498 nm |
| Wavelength (Maximum) | 505 nm |
| Wavelength (Minimum) | 490 nm |
| Wavelength (Nominal) | 498 nm |
