7381-5PG-3ES
ActiveConxall/Switchcraft

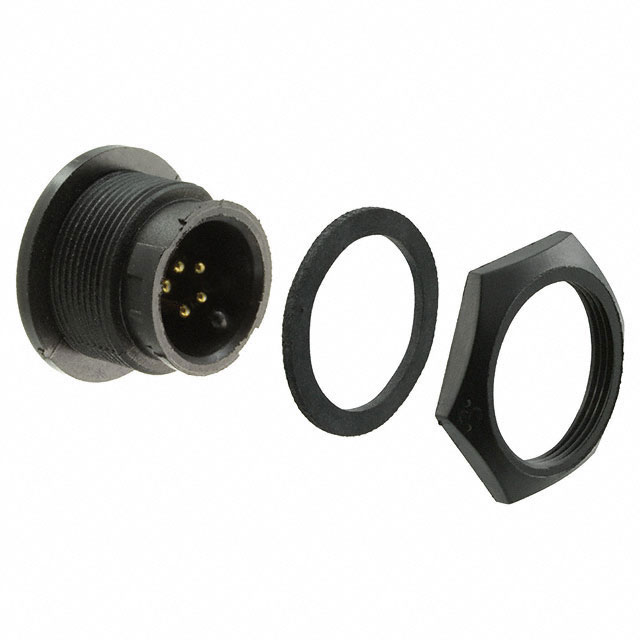

CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7381-5PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7381-5PG-3ES | 7381-5PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 600 V | 600 V |
7381-5PG Series
CONN RCPT MALE 5POS GOLD SOLDER
| Part | Orientation | Termination | Connector Type | Shielding | Fastening Type | Backshell Material, Plating | Color | Mounting Type | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Material | Mounting Feature | Ingress Protection | Applications | Voltage Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 7381-5PG-3ES | Keyed | Solder | Male Pins, Receptacle | Unshielded | Bayonet Lock | Nylon, Polyamide (PA) | Black | Panel Mount, Through Hole | Plastic | -40 °C | 115 °C | Gold | Brass | Bulkhead - Front Side Nut | Weathertight | Automotive, Communication Systems, Instrumentation | 600 V | Varies by Wire Gauge |
Conxall/Switchcraft 7381-5PG-300 | Keyed | Solder | Male Pins, Receptacle | Unshielded | Bayonet Lock | Nylon, Polyamide (PA) | Black | Panel Mount, Through Hole | Plastic | -40 °C | 115 °C | Gold | Brass | Bulkhead - Front Side Nut | Weathertight | Automotive, Communication Systems, Instrumentation | 600 V | Varies by Wire Gauge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 6.28 | |
Description
General part information
7381-5PG Series
5 Position Circular Connector Receptacle, Male Pins Solder
Documents
Technical documentation and resources
