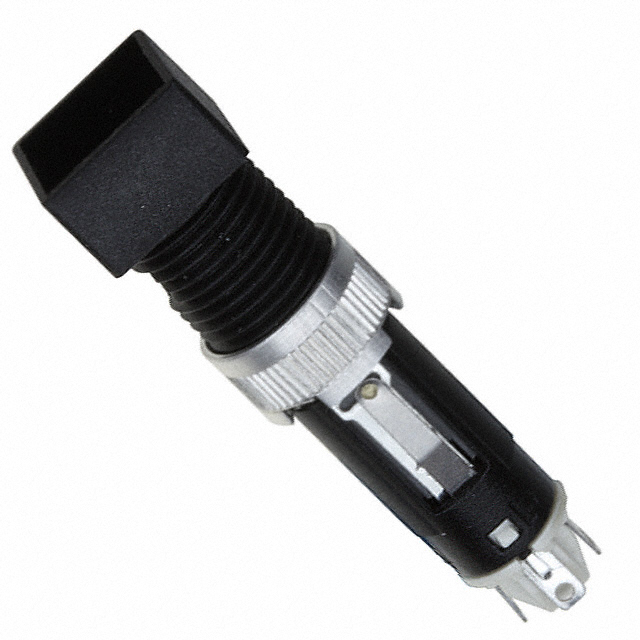

1.15116.0310000

Obsolete

RAFI USA

SWITCH PUSH SPST 0.25A 42V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSH SPST 0.25A 42V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15116.0310000	1.15.116 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Round, Button, Square
Circuit	SPST	SPST-NO, SPST
Current Rating (Amps)	250 mA	250 mA
Electrical Life	100000 Cycles	100000 - 1000000 Cycles
Ingress Protection	IP40	IP40
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	8.1 mm	8.1 mm
Switch Function	Off-On	Off-Mom, Off-On
Termination Style	Solder Lug	Solder Lug
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	42 V	42 V
Voltage Rating - DC	42 V	42 V

SWITCH PUSH SPST-NO 0.25A 42V

Part	Switch Function	Termination Style	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Type	Actuator Marking	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - DC	Electrical Life	Current Rating (Amps)	Ingress Protection
RAFI USA 1.15116.0010000	Off-Mom	Solder Lug	Button, Round	42 V	8.1 mm	Illuminated, Standard	No Marking	Panel Mount, Front	70 °C	-25 °C	SPST-NO	42 V	1000000 Cycles	250 mA	IP40
RAFI USA 1.15116.0310000	Off-On	Solder Lug	Button, Square	42 V	8.1 mm	Illuminated, Standard	No Marking	Panel Mount, Front	70 °C	-25 °C	SPST	42 V	100000 Cycles	250 mA	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST Standard, Illuminated Panel Mount, Front

Technical documentation and resources

No documents available
