2PB709ASL,215

Active

NXP USA Inc.

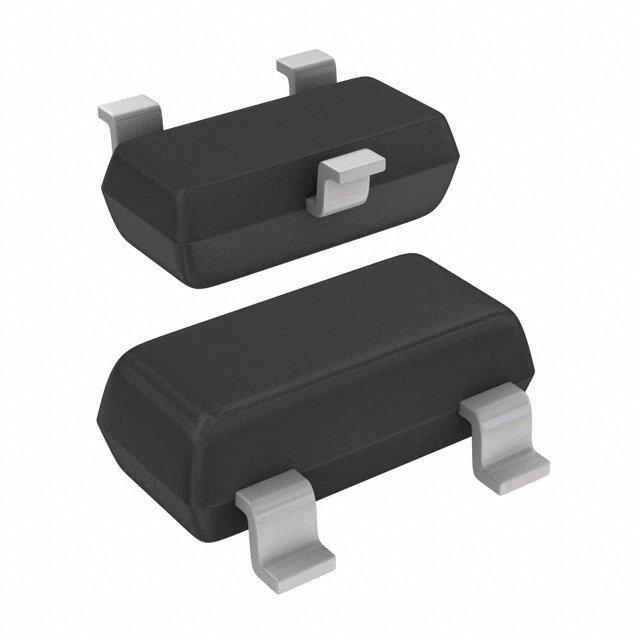

TRANSISTOR PNP 45V 100MA SOT-23

Search across all available documentation for this part.

Active

NXP USA Inc.

TRANSISTOR PNP 45V 100MA SOT-23

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2PB709ASL,215	2PB70 Series

	-	-
Current - Collector (Ic) (Max)	-	100 mA
Current - Collector Cutoff (Max)	-	0.01 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-	160 - 210
Frequency - Transition	-	60 - 70 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	150 °C
Package / Case	SOT-23-3, TO-236-3, SC-59	SOT-23-3, TO-236-3, SC-59
Power - Max	-	250 mW
Supplier Device Package	SOT-23 (TO-236AB)	SOT-23 (TO-236AB), MPAK, SMT3
Transistor Type	-	PNP
Vce Saturation (Max) @ Ib, Ic	-	500 mV
Voltage - Collector Emitter Breakdown (Max)	-	45 V

TRANSISTOR PNP 45V 100MA SOT-23

Part	Package / Case	Supplier Device Package	Mounting Type	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Vce Saturation (Max) @ Ib, Ic [Max]	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]
NXP USA Inc. 2PB709ASL,215	SC-59, SOT-23-3, TO-236-3	SOT-23 (TO-236AB)	Surface Mount
NXP USA Inc. 2PB709ARL,215
NXP USA Inc. 2PB709AQ,115	SC-59, SOT-23-3, TO-236-3	MPAK, SMT3	Surface Mount	0.01 µA	45 V	150 °C	160	PNP	500 mV	60 MHz	100 mA	250 mW
NXP USA Inc. 2PB709AR,115	SC-59, SOT-23-3, TO-236-3	MPAK, SMT3	Surface Mount	0.01 µA	45 V	150 °C	210	PNP	500 mV	70 MHz	100 mA	250 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Surface Mount SOT-23 (TO-236AB)
