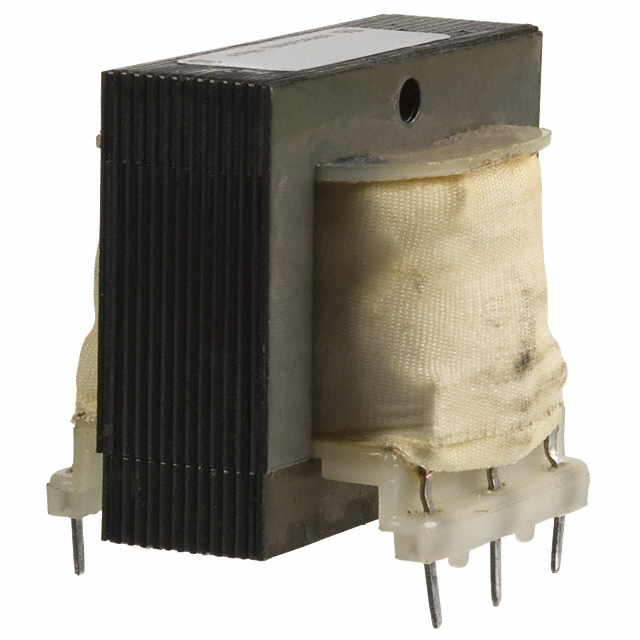

PC-12-350
ActiveSignal Transformer
PWR XFMR LAMINATED 4.4VA TH
PC-12-350
ActiveSignal Transformer
PWR XFMR LAMINATED 4.4VA TH
Description
General part information
PC-12-350
PWR XFMR LAMINATED 4.4VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | PC-12-350 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 700 mA |
| Current - Output (Max) Series | 350 mA |
| Height - Seated (Max) | 34.92 mm |
| Mounting Type | Through Hole |
| Power - Max | 4.4 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 41.3 mm |
| Size / Dimension Width | 31.8 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 6.3 V |
| Voltage - Secondary (Full Load) (Series) | 12.6 V |
| Weight | 0.313 lb |
