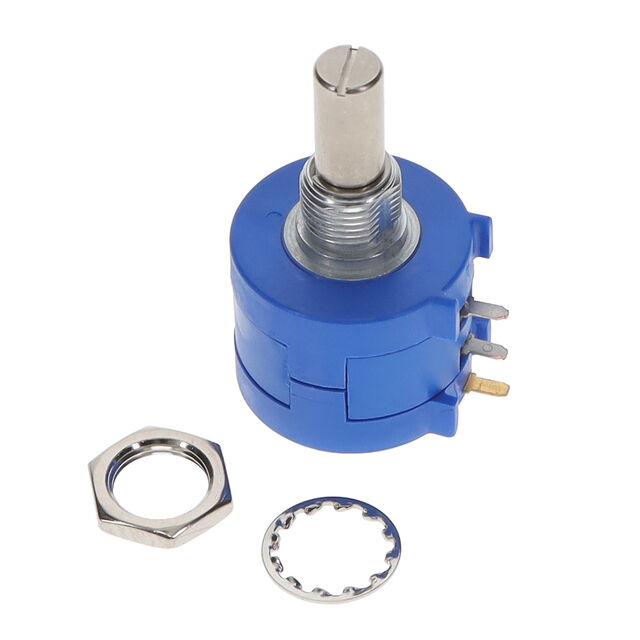

3590P-2-202L
ActiveBourns Inc.
POT 2K OHM 2W WIREWOUND LINEAR
3590P-2-202L
ActiveBourns Inc.
POT 2K OHM 2W WIREWOUND LINEAR
Description
General part information
3590P-2-202L
2k Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 2W PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | 3590P-2-202L |
|---|---|
| Actuator Diameter | 6.35 mm |
| Actuator Length | 0.812 in |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Mounting Type | Panel Mount |
| Number of Gangs | 1 |
| Number of Turns | 10 turns |
| Power (Watts) | 2 w |
| Resistance | 2 kOhm |
| Resistive Material | Wirewound |
| Rotation | 3600 ° |
| Size - Body Diameter | 0.875 in |
| Size - Body Shape | Round |
| Taper | Linear |
| Temperature Coefficient | 50 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 5 % |
