840-AG11D-ESL-LF
ActiveTE Connectivity AMP Connectors

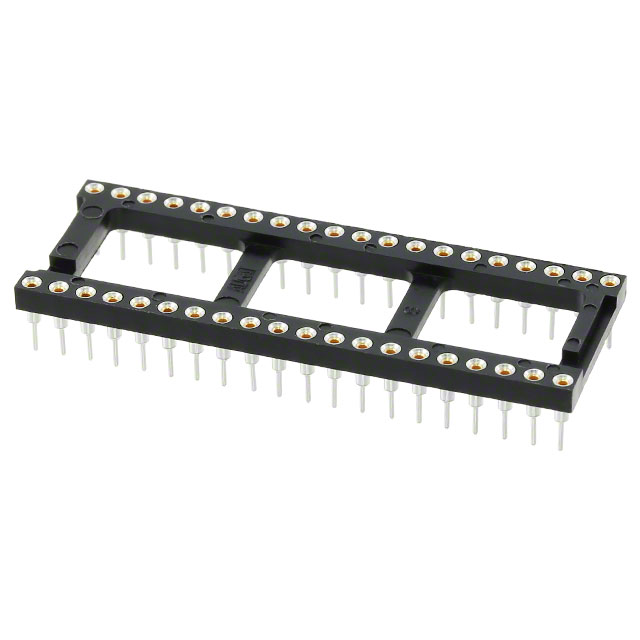

CONN IC DIP SOCKET 40POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
840-AG11D-ESL-LF
ActiveTE Connectivity AMP Connectors
CONN IC DIP SOCKET 40POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 840-AG11D-ESL-LF | 840 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold, Tin-Lead |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Finish Thickness - Post | Flash | Flash |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper, Copper Alloy |
| Contact Material - Post | Copper | Copper |
| Contact Material - Post | - | Copper Alloy |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | - | 3 A |
| Features | Open Frame | Open Frame |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | 40 | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | DIP | DIP |
| Type | 0.6 in | 0.6 in |
| Type | 15.24 mm | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
840 Series
CONN IC DIP SOCKET 40POS GOLD
| Part | Pitch - Mating | Pitch - Mating | Termination Post Length | Termination Post Length | Contact Material - Mating | Type | Type | Type | Mounting Type | Termination | Housing Material | Contact Finish - Post | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Material - Post | Pitch - Post | Pitch - Post | Contact Finish Thickness - Mating | Features | Contact Finish - Mating | Current Rating (Amps) | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 840-AG11D-ESL-LF | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Beryllium Copper | DIP | 0.6 in | 15.24 mm | Through Hole | Solder | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Gold | Flash | 40 | 20 | 2 | 10 mOhm | 105 ░C | -55 °C | UL94 V-0 | Copper | 2.54 mm | 0.1 in | Flash | Open Frame | Gold | ||
TE Connectivity AMP Connectors 840-AG11D | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Copper Alloy | DIP | 0.6 in | 15.24 mm | Through Hole | Solder | Polyester | Tin-Lead | 40 | 20 | 2 | 10 mOhm | 105 ░C | -55 °C | UL94 V-0 | 2.54 mm | 0.1 in | Open Frame | Gold | 3 A | Copper Alloy |
Description
General part information
840 Series
40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
