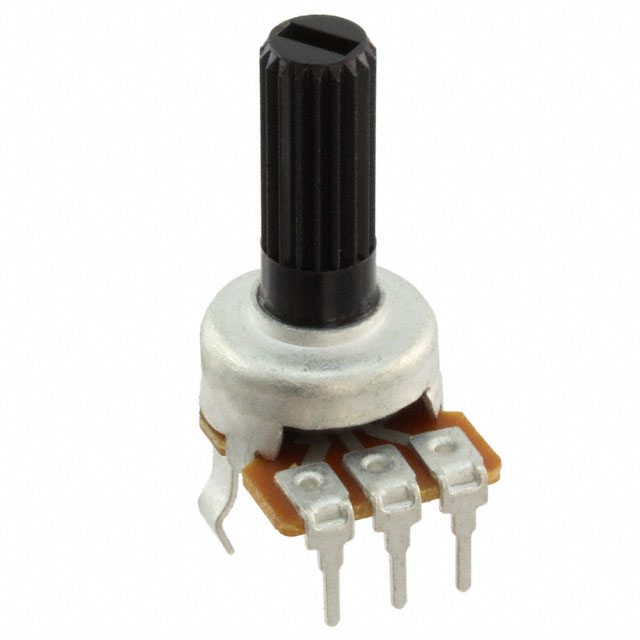

P120PK-Y25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P120PK-Y25BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P120PK-Y25BR10K	P120P Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	4 - 20 mm
Actuator Length	-	0.157 - 0.787 in
Actuator Length [x]	0.984 in	0.984 in
Actuator Length [x]	25 mm	25 mm
Actuator Type	Knurled	Knurled, Flatted
Adjustment Type	Top Adjustment	Top Adjustment
Built in Switch	False	False
Mounting Type	Through Hole, Snap In	Through Hole, Snap In
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.05 W	0.05 W
Power (Watts)	50 mW	50 mW
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	5 - 100 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [diameter]	12.4 mm	12.4 mm
Size - Body [diameter]	0.488 in	0.488 in
Taper	Linear	Linear
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P120P Series

POT 50K OHM 1/20W PLASTIC LINEAR

Part	Rotation	Termination Style	Resistive Material	Actuator Length [z]	Actuator Length [z]	Number of Gangs	Size - Body [diameter]	Size - Body [diameter]	Power (Watts)	Power (Watts)	Taper	Mounting Type	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Number of Turns	Actuator Type	Tolerance	Adjustment Type	Actuator Length [x]	Actuator Length [x]	Resistance (Ohms)
TT Electronics/BI P120PK-Y20BR50K	300 ░	Board Locks, PC Pins	Conductive Plastic	20 mm	0.787 in	1	12.4 mm	0.488 in	0.05 W	50 mW	Linear	Snap In, Through Hole	50 kOhms	0.236 in	6 mm	1	Knurled	20 %	Top Adjustment
TT Electronics/BI P120PK-Y25BR5K	300 ░	Board Locks, PC Pins	Conductive Plastic			1	12.4 mm	0.488 in	0.05 W	50 mW	Linear	Snap In, Through Hole	5 kOhms	0.236 in	6 mm	1	Knurled	20 %	Top Adjustment	0.984 in	25 mm
TT Electronics/BI P120PK-Y20BR100K	300 ░	Board Locks, PC Pins	Conductive Plastic	20 mm	0.787 in	1	12.4 mm	0.488 in	0.05 W	50 mW	Linear	Snap In, Through Hole	100 kOhms	0.236 in	6 mm	1	Knurled	20 %	Top Adjustment
TT Electronics/BI P120PK-F04BR10K	300 ░	Board Locks, PC Pins	Conductive Plastic	4 mm	0.157 in	1			0.05 W	50 mW	Linear	Snap In, Through Hole		0.236 in	6 mm	1	Flatted	20 %	Top Adjustment			10k
TT Electronics/BI P120PK-Y20BR20K	300 ░	Board Locks, PC Pins	Conductive Plastic	20 mm	0.787 in	1	12.4 mm	0.488 in	0.05 W	50 mW	Linear	Snap In, Through Hole	20 kOhms	0.236 in	6 mm	1	Knurled	20 %	Top Adjustment
TT Electronics/BI P120PK-Y25BR10K	300 ░	Board Locks, PC Pins	Conductive Plastic			1	12.4 mm	0.488 in	0.05 W	50 mW	Linear	Snap In, Through Hole		0.236 in	6 mm	1	Knurled	20 %	Top Adjustment	0.984 in	25 mm	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.61
		10	$ 1.42
		25	$ 1.28
		40	$ 1.23
		80	$ 1.19
		230	$ 1.12
		440	$ 0.95
		1200	$ 0.88
		6000	$ 0.72

Description

General part information

P120P Series

10k Ohm 1 Gang Linear Through Hole, Snap In Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
