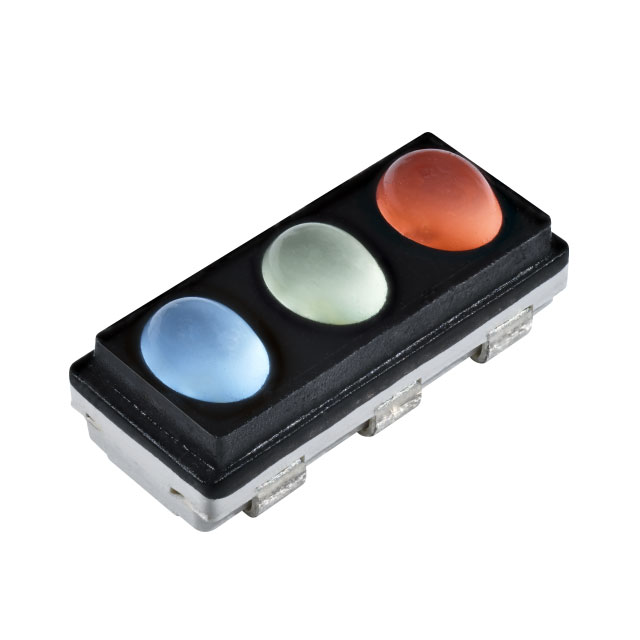

CV94A-FGC-CP1R1HJ1BB7D3D3
Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 2.6V Green, 2.7V Blue 6-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CV94A-FGC-CP1R1HJ1BB7D3D3 |
|---|---|
| Color | Blue (RGB), Green, Red |
| Configuration | Independent |
| Current - Test (Blue) | 10 mA |
| Current - Test (Green) | 10 mA |
| Current - Test (Red) | 15 mA |
| Current - Test Colors | Green, Red, Blue |
| Features | IPx8 |
| Height (Max) | 3.85 mm |
| Lens Color (RGB) | Green, Blue, Red |
| Lens Length | 2.8 mm |
| Lens Style | Oval, Domed Top |
| Lens Transparency | Diffused |
| Lens Width | 2.1 mm |
| Millicandela Rating (Blue) | 651.5 mcd |
| Millicandela Rating (Green) | 2912 mcd |
| Millicandela Rating (Red) | 1820 mcd |
| Millicandela Rating Colors | Red, Green, Blue |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Package Name | 6-PLCC |
| Size / Dimension Length | 9.4 mm |
| Size / Dimension Width | 4.2 mm |
| Voltage - Forward (Vf) (Typ) (Blue) | 2.7 V |
| Voltage - Forward (Vf) (Typ) (Green) | 2.6 V |
| Voltage - Forward (Vf) (Typ) (Red) | 2.1 V |
| Voltage - Forward (Vf) (Typ) Color | Red, Blue, Green |
| Wavelength - Dominant (Blue) | 470 nm |
| Wavelength - Dominant (Green) | 530 nm |
| Wavelength - Dominant (Red) | 622 nm |
| Wavelength - Dominant Color | Red, Green, Blue |
