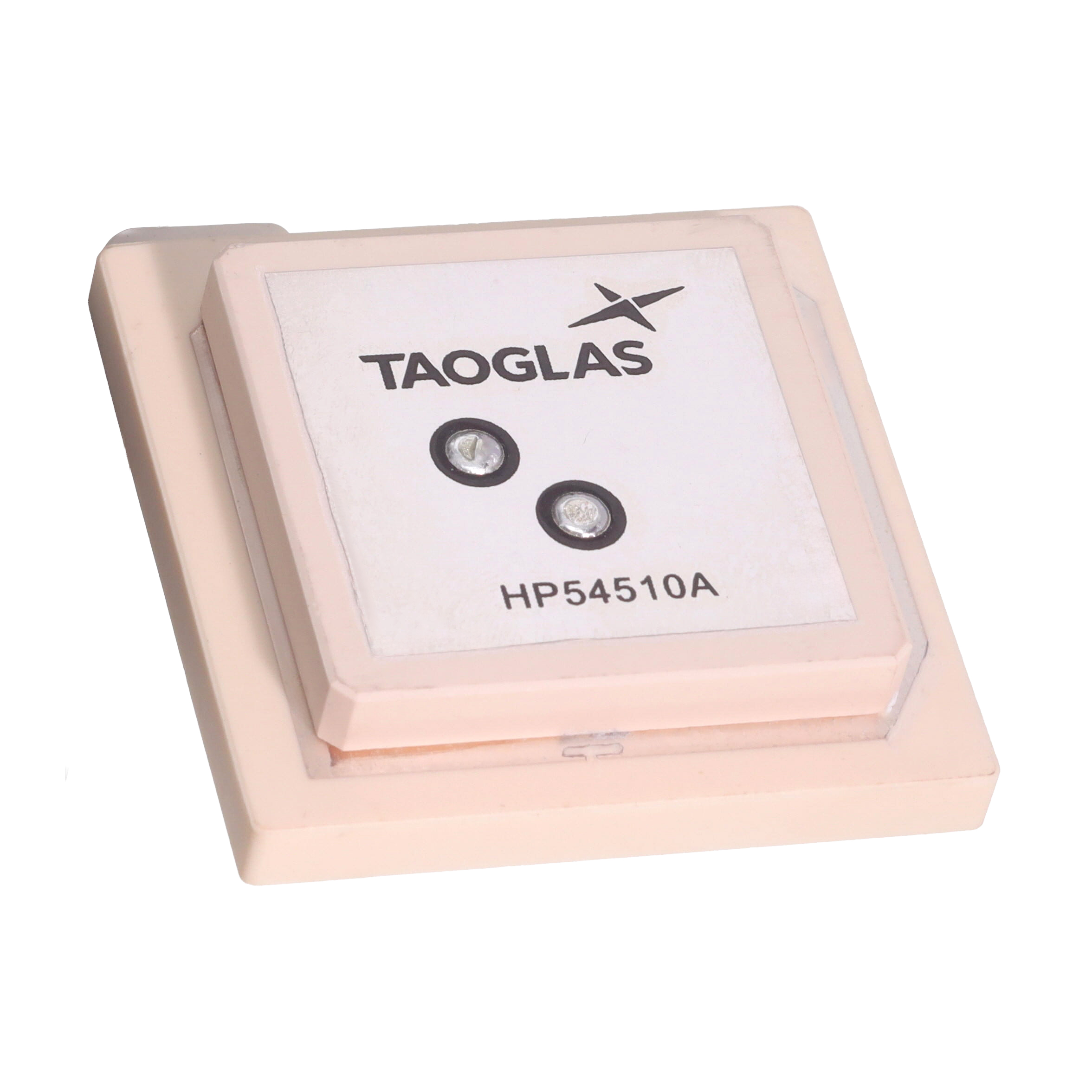

HP54510.A
ActiveTaoglas Limited
GNSS L1,L5 L-BAND DUAL FEED STAC
HP54510.A
ActiveTaoglas Limited
GNSS L1,L5 L-BAND DUAL FEED STAC
Description
General part information
HP54510.A
RF ANTENNA BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Ceramic Patch Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HP54510.A |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, SBAS, QZSS, GNSS, GPS, BEIDOU, Galileo, IRNSS |
| Frequency (Center/Band) | 1.602GHz, 1.561GHz, 1.177GHz, 1.542GHz, 1.575GHz |
| Frequency (Center/Band) - 1 | 1.177 GHz |
| Frequency (Center/Band) - 2 | 1.542 GHz |
| Frequency (Center/Band) - 3 | 1.561 GHz |
| Frequency (Center/Band) - 4 | 1.575 GHz |
| Frequency (Center/Band) - 5 | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.187 GHz |
| Frequency Range (Band 1) Minimum | 1.166 GHz |
| Frequency Range (Band 2) Maximum | 1.559 GHz |
| Frequency Range (Band 2) Minimum | 1.525 GHz |
| Frequency Range (Band 3) Maximum | 1.563 GHz |
| Frequency Range (Band 3) Minimum | 1.559 GHz |
| Frequency Range (Band 4) Maximum | 1.587 GHz |
| Frequency Range (Band 4) Minimum | 1.563 GHz |
| Frequency Range (Band 5) Maximum | 1.61 GHz |
| Frequency Range (Band 5) Minimum | 1.593 GHz |
| Gain | 4.82 dBi, 5.06 dBi, 5.08 dBi, 4.15 dBi, 4.94 dBi |
| Height (Max) | 0.394 in |
| Mounting Type | Surface Mount |
| Number of Bands | 5 |
| RF Family/Standard | Navigation |
| Termination | Solder |
