8-03PMMS-SH7AA0
ActiveMcGill Microwave Systems

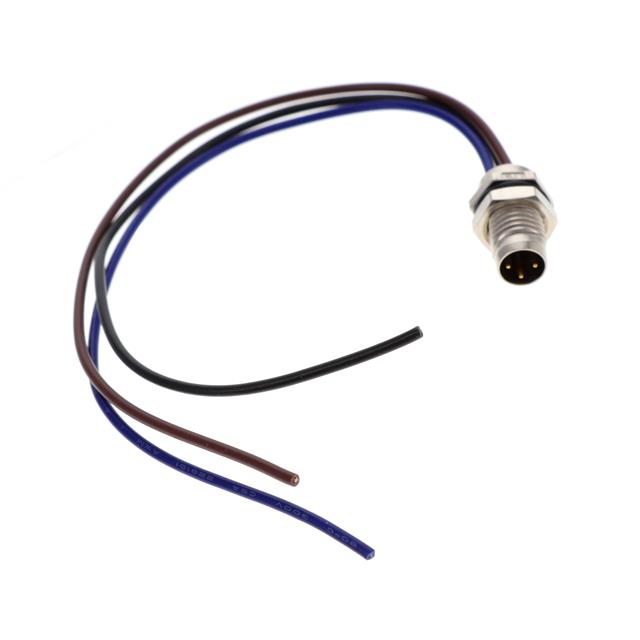

CIRC CBL 3POS PLUG TO WIRE LEADS
8-03PMMS-SH7AA0
ActiveMcGill Microwave Systems
CIRC CBL 3POS PLUG TO WIRE LEADS
Description
General part information
8-03PMMS-SH7AA0
Circular Cable Assembly Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-03PMMS-SH7AA0 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 3 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | Keyed |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Type | Individual |
| Color | Multiple |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Shielding | Unshielded |
| Usage | Industrial Environments |
