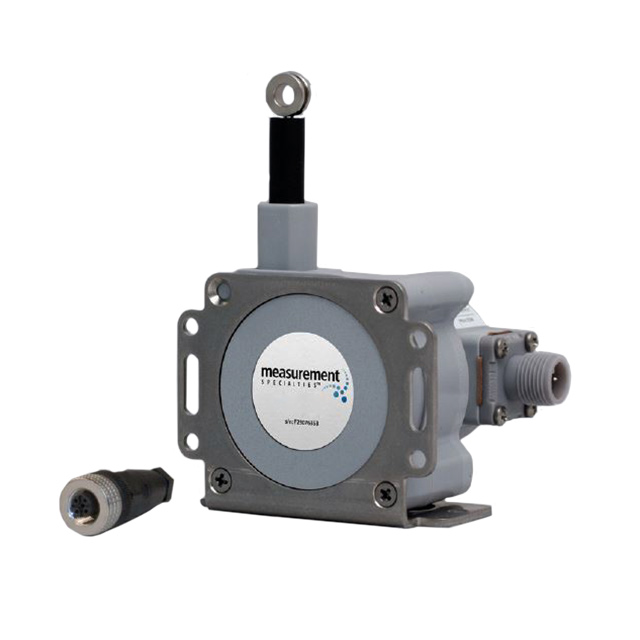

Specification	SPD-4-3

Actuator Type	String Potentiometer
For Measuring	Linear Position
Linear Range (Max)	120 mm
Linear Range (Min)	0 mm
Mounting Type	Custom
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output	Analog Voltage
Output Current Range 1 (Max)	20 mA
Output Current Range 1 (Min)	4 mA
Package / Case	Box with Connector
Technology	Resistive
Termination Style	Connector
Voltage - Supply (Maximum)	40 VAC
Voltage - Supply (Minimum)	8 V

MEAS SP Series

Part	Linear Range (Max)	Linear Range (Min)	Linearity Tolerance	Output Voltage Range 1 (Min)	Output Current Range 1 (Max)	Output Voltage Range 1 (Max)	Output Current Range 1 (Min)	Package / Case	Voltage - Supply (Option 2)	Voltage - Supply (Option 1)	Voltage - Supply Maximum	Voltage - Supply Minimum	Voltage - Supply (Minimum)	Voltage - Supply	Voltage - Supply (Maximum)	For Measuring	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Actuator Type	Termination Style	Resistance Tolerance (%)	Resistance	Technology	Output
TE Connectivity AMP Connectors SP3-25	635 mm	0 mm	0.25 %	0 V	20 mA	10 V	4 mA	Box with Connector	40 V	8 V	32 V	12 VAC	12 VDC	8 V 40 V	32 V	Linear Position	71 °C	-18 °C	Chassis Mount	String Potentiometer	Wire Leads
TE Connectivity AMP Connectors SP1-4-3
TE Connectivity AMP Connectors SE1-25
TE Connectivity AMP Connectors SP1-50	1270 mm	0 mm						Box with Connector						30 VDC		Linear Position	70 °C	-18 °C	Panel Mount	String Potentiometer	Solder Lug	10 %	10 kOhm	Resistive	Analog Voltage
TE Connectivity AMP Connectors SE1-50	1270 mm	0 mm						Box with Connector						5 VDC		Linear Position	85 °C	-10 °C	Chassis Mount	String Potentiometer	Connector				Quadrature TTL
TE Connectivity AMP Connectors SPD-12-3	317 mm	0 mm			20 mA		4 mA	Box with Connector					8 V		40 VAC	Linear Position	70 °C	-40 °C	Custom	String Potentiometer	Connector			Resistive	Analog Voltage
TE Connectivity AMP Connectors SPD-50-3	1270 mm	0 mm			20 mA		4 mA	Box with Connector					8 V		40 VAC	Linear Position	70 °C	-40 °C	Custom	String Potentiometer	Connector			Resistive	Analog Voltage
TE Connectivity AMP Connectors SP2-12	317 mm	0 mm						Box with Wire Leads						30 VDC		Linear Position	71 °C	-18 °C	Panel Mount	String Potentiometer	Wire Leads	10 %	10 kOhm	Resistive	Analog Voltage
TE Connectivity AMP Connectors SP1-12	317 mm	0 mm						Box with Connector						30 VDC		Linear Position	70 °C	-18 °C	Panel Mount	String Potentiometer	Solder Lug	10 %	10 kOhm	Resistive	Analog Voltage
TE Connectivity AMP Connectors SP2-50	1270 mm	0 mm						Box with Wire Leads						30 VDC		Linear Position	71 °C	-18 °C	Panel Mount	String Potentiometer	Wire Leads	10 %	10 kOhm	Resistive	Analog Voltage
