LMR-400-NM-SMRP(QTY:15ft)
ActiveMcGill Microwave Systems
LMR 400 CABLE ASSY 15FT N MALE T
LMR-400-NM-SMRP(QTY:15ft)
ActiveMcGill Microwave Systems
LMR 400 CABLE ASSY 15FT N MALE T
Description
General part information
LMR-400-NM-SMRP(QTY:15ft)

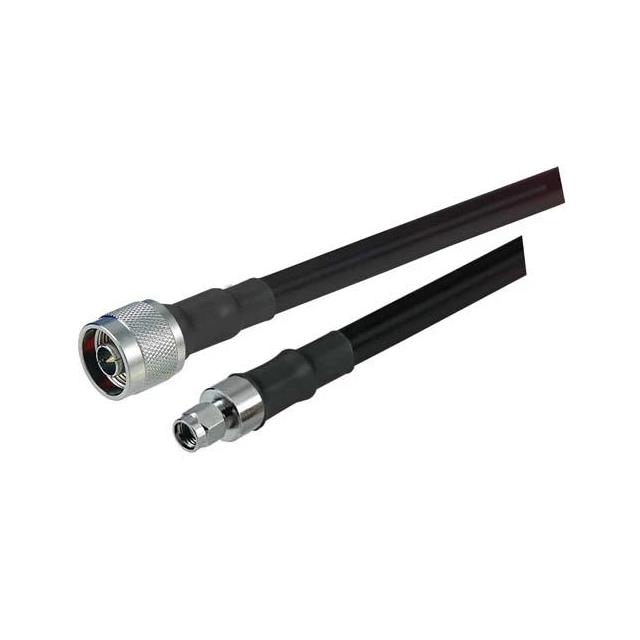

Cable Assembly Coaxial N-Type to RP-SMA LMR 400 180.0" (4.6m) 15.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-NM-SMRP(QTY:15ft) |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | RP-SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Length | 180 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, RP-SMA |
