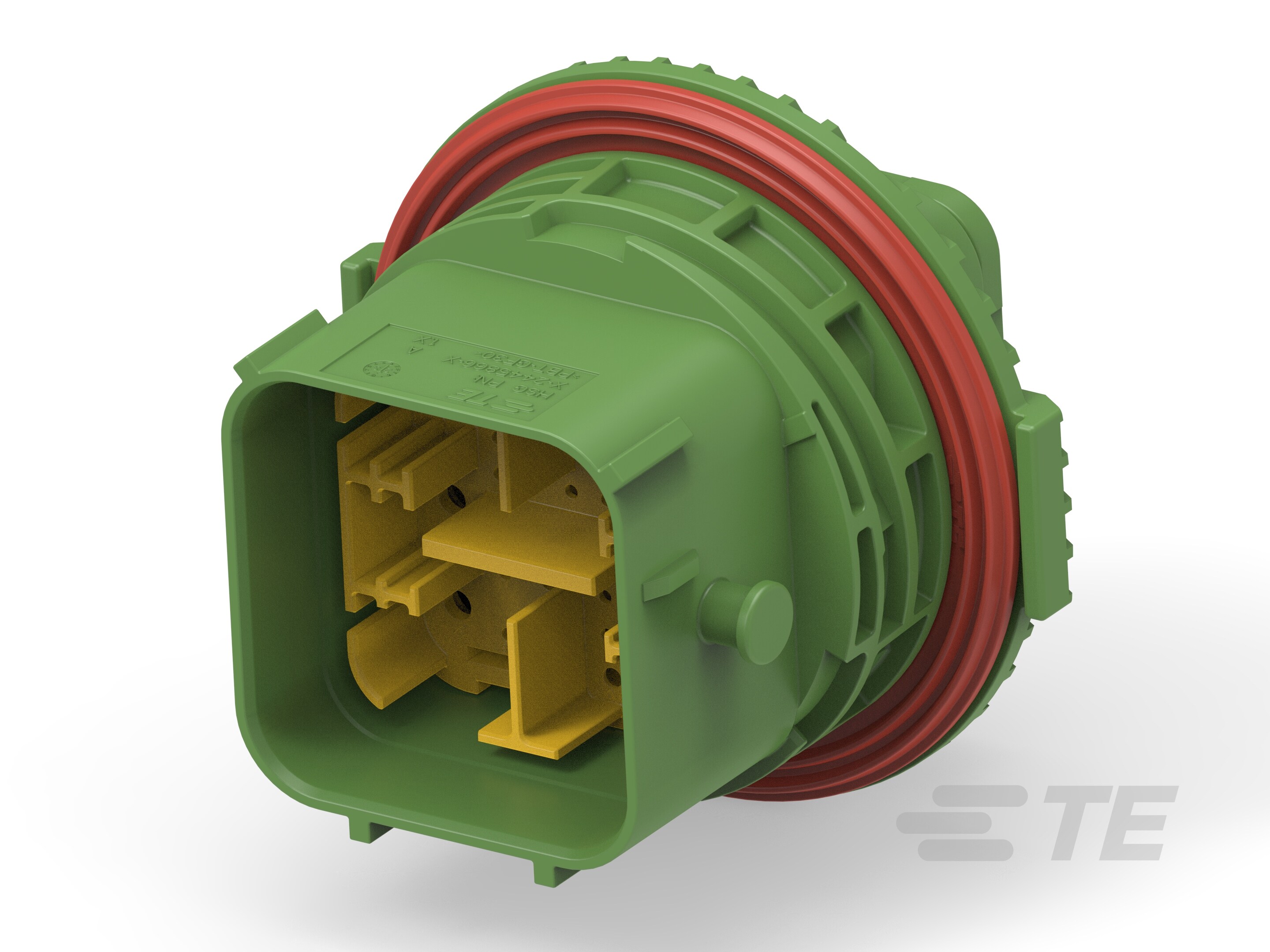

1-2445860-3
ActiveTE Connectivity AMP Connectors
36POS,HYBRID,PIN HSG ASSY,SLD,COD C
1-2445860-3
ActiveTE Connectivity AMP Connectors
36POS,HYBRID,PIN HSG ASSY,SLD,COD C
Description
General part information
DEUTSCH NTSEAL Series
36 Position Housing, Receptacle, Cable-to-Cable, Sealable, Green, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), DEUTSCH NTSEAL
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2445860-3 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Sealed, Terminal Position Lock (TPA) |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 36 |
| Number of Rows | 7 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
