Specification	XPPAWT-H0-0000-000BU30E8

CCT (K)	2700 K
Color	White, Warm
CRI (Color Rendering Index)	70
Current - Max	3 A
Current - Test	1 A
Flux (Maximum)	340 lm
Flux (Minimum)	320 lm
Flux (Nominal)	330 lm
Height - Seated (Max)	0.033 in
Lumens/Watt	106 lm/W
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Package Name	1414
Size / Dimension Length	0.136 in
Size / Dimension Width	0.136 in
Thermal Resistance of Package	2.3 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	3.1 V

XPPAWT Series

Part	Thermal Resistance of Package	Color	Mounting Type	Package Name	CCT (K)	Package / Case	Voltage - Forward (Vf) (Typ)	Current - Max	Lumens/Watt	Current - Test	Size / Dimension Length	Size / Dimension Width	Viewing Angle	Flux (Maximum)	Flux (Nominal)	Flux (Minimum)	Height - Seated (Max)	CRI (Color Rendering Index)
CreeLED, Inc. XPPAWT-H0-0000-000UT60E2	2.3 °C/W	Cool White	Surface Mount	1414	5700 K	1414 (3535 Metric)	3.1 V	3 A	94 lm/W	1 A	0.136 in	0.136 in	115 °	300 lm	290 lm	280 lm	0.033 in	90

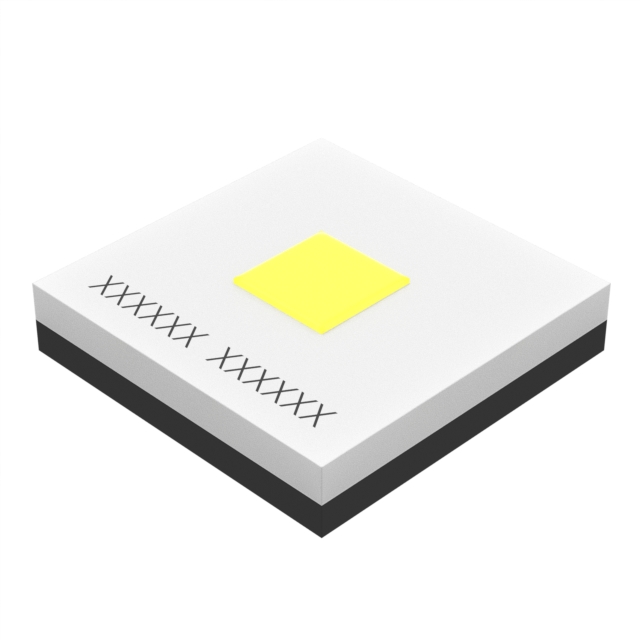

CreeLED, Inc. XPPAWT-H0-0000-000BU30E7	2.3 °C/W	Warm White	Surface Mount	1414	3000 K	1414 (3535 Metric)	3.1 V	3 A	106 lm/W	1 A	0.136 in	0.136 in	115 °	340 lm	330 lm	320 lm	0.033 in	70
CreeLED, Inc. XPPAWT-H0-0000-000UT60E3	2.3 °C/W	Cool White	Surface Mount	1414	5000 K	1414 (3535 Metric)	3.1 V	3 A	94 lm/W	1 A	0.136 in	0.136 in	115 °	300 lm	290 lm	280 lm	0.033 in	90
CreeLED, Inc. XPPAWT-H0-0000-000UT40E6	2.3 °C/W	Warm White	Surface Mount	1414	3500 K	1414 (3535 Metric)	3.1 V	3 A	81 lm/W	1 A	0.136 in	0.136 in	115 °	260 lm	250 lm	240 lm	0.033 in	90
CreeLED, Inc. XPPAWT-H0-0000-000HU30DT	2.3 °C/W	Cool White	Surface Mount	1414	7000 K	1414 (3535 Metric)	3.1 V	3 A	106 lm/W	1 A	0.136 in	0.136 in	115 °	340 lm	330 lm	320 lm	0.033 in	80
CreeLED, Inc. XPPAWT-H0-0000-000HU30E1	2.3 °C/W	Cool White	Surface Mount	1414	6500 K	1414 (3535 Metric)	3.1 V	3 A	106 lm/W	1 A	0.136 in	0.136 in	115 °	340 lm	330 lm	320 lm	0.033 in	80
CreeLED, Inc. XPPAWT-H0-0000-000BU50E5	2.3 °C/W	Neutral White	Surface Mount	1414	4000 K	1414 (3535 Metric)	3.1 V	3 A	119 lm/W	1 A	0.136 in	0.136 in	115 °	380 lm	370 lm	360 lm	0.033 in	70
CreeLED, Inc. XPPAWT-H0-0000-000BU50CV	2.3 °C/W	Cool White	Surface Mount	1414	6000 K	1414 (3535 Metric)	3.1 V	3 A	119 lm/W	1 A	0.136 in	0.136 in	115 °	380 lm	370 lm	360 lm	0.033 in	70
CreeLED, Inc. XPPAWT-H0-0000-000HU30DV	2.3 °C/W	Cool White	Surface Mount	1414	6000 K	1414 (3535 Metric)	3.1 V	3 A	106 lm/W	1 A	0.136 in	0.136 in	115 °	340 lm	330 lm	320 lm	0.033 in	80
CreeLED, Inc. XPPAWT-H0-0000-000BU50E2	2.3 °C/W	Cool White	Surface Mount	1414	5700 K	1414 (3535 Metric)	3.1 V	3 A	119 lm/W	1 A	0.136 in	0.136 in	115 °	380 lm	370 lm	360 lm	0.033 in	70

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

XPPAWT-H0-0000-000BU30E8 | Datasheet
