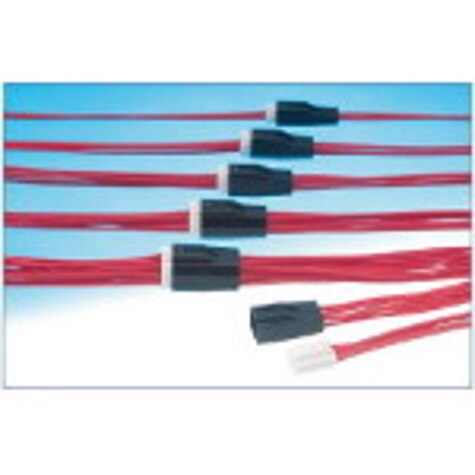

Specification	DF62W-2EP-2.2C-PA

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Water Resistant
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-35 °C
Pitch	0.087 in

DF62W Series

Headers & Wire Housings

Part	Pin or Socket	Contact Finish	Contact Finish Thickness	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Termination	Related Product Type	For Use With/Related Products	Related Product Maximum Gauge	Related Product Minimum Gauge	Tool Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Pitch	Number of Rows	Insulation Material	Mounting Type	Color	Fastening Type	Number of Positions	Contact Type	Features	Row Spacing	Note	Accessory Type	Style	Shrouding	Ingress Protection	Contact Finish - Mating	Pitch - Mating	Contact Shape	Row Spacing - Mating	Number of Positions Loaded	Termination	Material Flammability Rating	Insulation Color	Contact Material	Insulation Height	Contact Length - Post	Current Rating	Current Rating	Voltage Rating
Hirose Electric Co Ltd DF62W-2022SCFA	Socket	Gold	8 µin	19.5 AWG	22 AWG	Crimp
Hirose Electric Co Ltd DF62W/RE-MD							Rectangular Contacts	22-26 AWG Rectangular Contacts	26 AWG	22 AWG	Extraction Tool
Hirose Electric Co Ltd DF62W-6EP-2.2C						Crimp						-35 °C	105 °C	Plug	0.087 in	2	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Black	Latch Holder	6	Male Pin	Water Resistant	0.079 in	Contacts Not Included
Hirose Electric Co Ltd DF62W-WP								DF62W Series																		Plug Polarizing Device (Key Post)
Hirose Electric Co Ltd DF62W-9P-2.2DSA(01)												-35 °C	105 °C	Header		3	Polybutylene Terephthalate (PBT)	Through Hole		Latch Holder	9	Male Pin	Board Guide				Board Cable/Wire	Shrouded - 4 Wall	IP67	Gold	0.087 in	Square	0.087 in	All	Solder	UL94 V-0	Black	Phosphor Bronze	0.61 in	0.112 in	0 A	Varies by Wire Gauge	250 V
Hirose Electric Co Ltd DF62W-9EP-2.2C						Crimp						-35 °C	105 °C	Plug	0.087 in	3	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Black	Latch Holder	9	Male Pin	Water Resistant	0.079 in	Contacts Not Included
Hirose Electric Co Ltd DF62W-2S-2.2C(11)						Crimp						-35 °C	105 °C	Socket	0.087 in	1	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Black	Latch Lock	2	Female Socket	Water Resistant		Contacts Not Included
Hirose Electric Co Ltd DF62W-2022SCF	Socket	Tin	39.4 Ąin	19.5 AWG	22 AWG	Crimp
Hirose Electric Co Ltd DF62W-3S-2.2C						Crimp						-35 °C	105 °C	Socket	0.087 in	2	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	White	Latch Lock	3	Female Socket	Water Resistant	0.079 in	Contacts Not Included
Hirose Electric Co Ltd DF62W-2S-2.2C						Crimp						-35 °C	105 °C	Socket	0.087 in	1	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	White	Latch Lock	2	Female Socket	Water Resistant		Contacts Not Included
