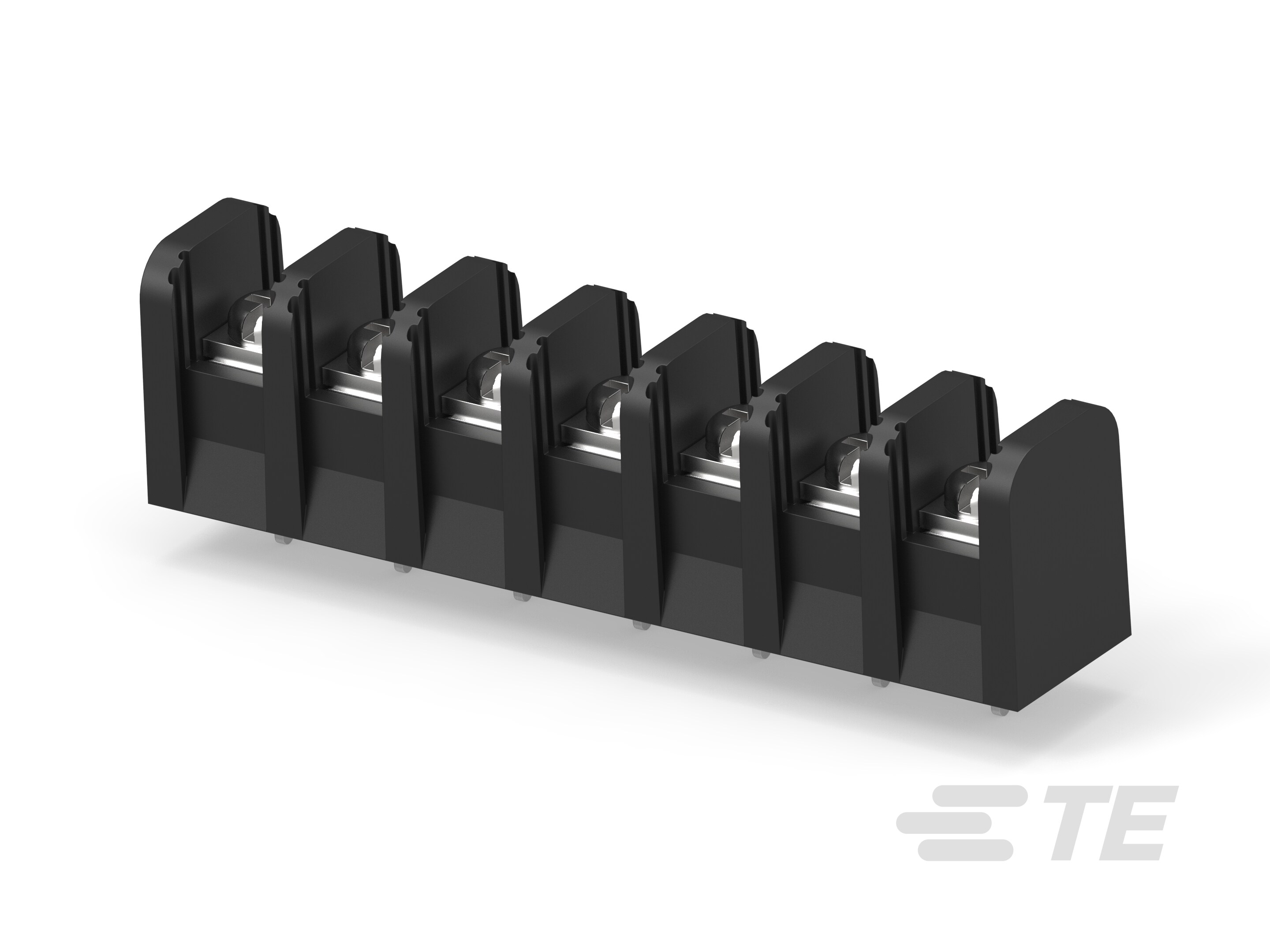

Specification	3-796602-2

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Color	Black
Current Rating	20 A
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Circuits	7
Number of Rows	1
Number of Wire Entries	7
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-60 °C
Pitch	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Clear Chromate, Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	600 V
Wire Gauge	12 AWG

BUCHANAN SSB7 Series

Part	Terminal Screw Finish	Terminal Screw Material	Material - Insulation	Material Flammability Rating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Barrier Type	Terminal Block Type	Voltage Rating	Bottom Termination Length	Bottom Termination	Pitch	Current Rating	Number of Wire Entries	Number of Circuits	Features	Color	Top Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
TE Connectivity AMP Connectors SSB7TG020503	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-2	Chassis Panel	-60 °C	105 °C	1	2 Wall (Dual)	Barrier Block	600 V	0.25 in	Insulated Quick Connect	0.438 in	20 A	2	2	Flange	Black	Screws	12 AWG	22 AWG
TE Connectivity AMP Connectors SSB7TF140501	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-2	Chassis Panel	-60 °C	105 °C	1	2 Wall (Dual)	Barrier Block	600 V	0.25 in	Insulated Quick Connect	0.438 in	20 A	14	14	Flange	Black	Screws	12 AWG	22 AWG
TE Connectivity AMP Connectors SSB7TP160701	Clear Chromate Zinc	Steel	Thermoplastic	UL94 V-2	Chassis Panel	-60 °C	105 °C	1	2 Wall (Dual)	Barrier Block	600 V		Insulated Wire Wrap	0.438 in	20 A	16	16		Black	Screws	12 AWG	22 AWG
