75-069628-51S
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED PLUG
75-069628-51S
ActiveAmphenol Aerospace Operations
MIL-5015 MS/AC THREADED PLUG
Description
General part information
75-069628-51S

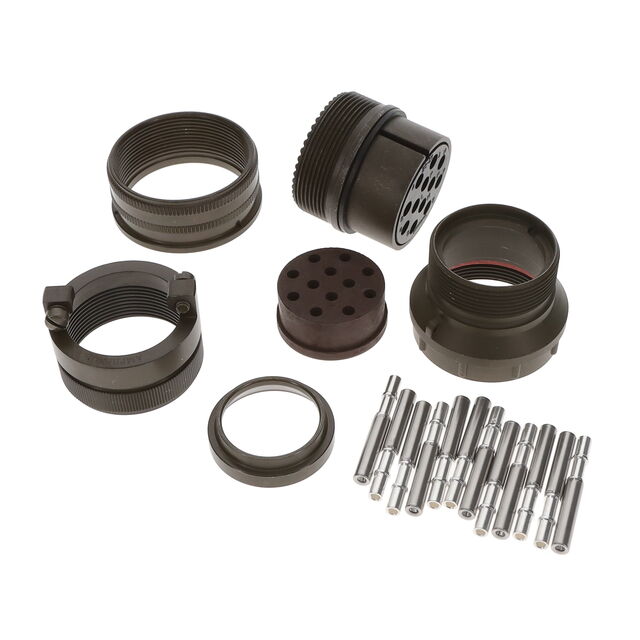

12 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 75-069628-51S |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 23 A |
| Fastening Type | Threaded |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 51 |
| Shell Size - Insert (Minimum) | 28 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating (AC) | 500 VAC |
| Voltage Rating (DC) | 700 VDC |
