RCJ-2123
ActiveSame Sky (Formerly CUI Devices)

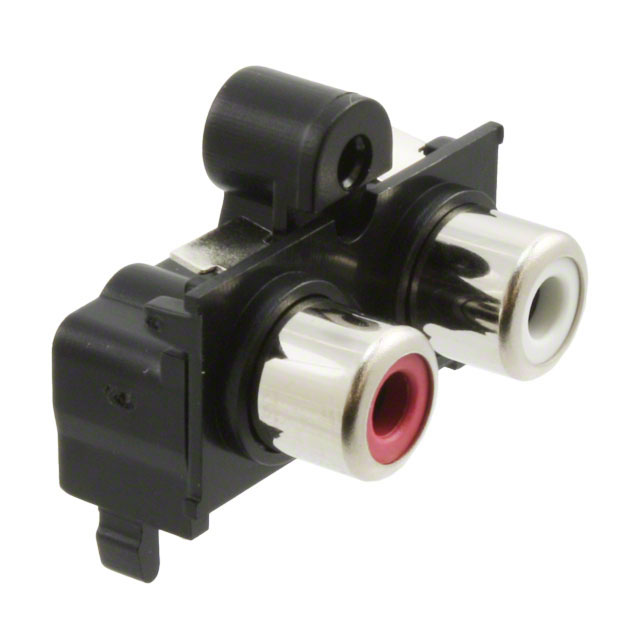

CONN RCA F 4 POS SOLDER RA THRU-HOLE 4 TERMINAL 2 PORT
RCJ-2123
ActiveSame Sky (Formerly CUI Devices)
CONN RCA F 4 POS SOLDER RA THRU-HOLE 4 TERMINAL 2 PORT
Description
General part information
RCJ-2123
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | RCJ-2123 |
|---|---|
| Actual Diameter (ID) | 0.138 in |
| Actual Diameter (OD) | 0.327 in |
| Body Color | Black, Silver |
| Body Material | Bronze |
| Conductors per Set | 2 |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Current Rating | 5 A |
| Features | Board Lock |
| Gender | Female |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Industry Recognized Mating Diameter (ID) | 3.2 mm |
| Industry Recognized Mating Diameter (OD) | 9 mm |
| Insulation Color | White, Red |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Number of Sets | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
| Total Contacts | 4 |
| Voltage - Rated | 24 VAC |
