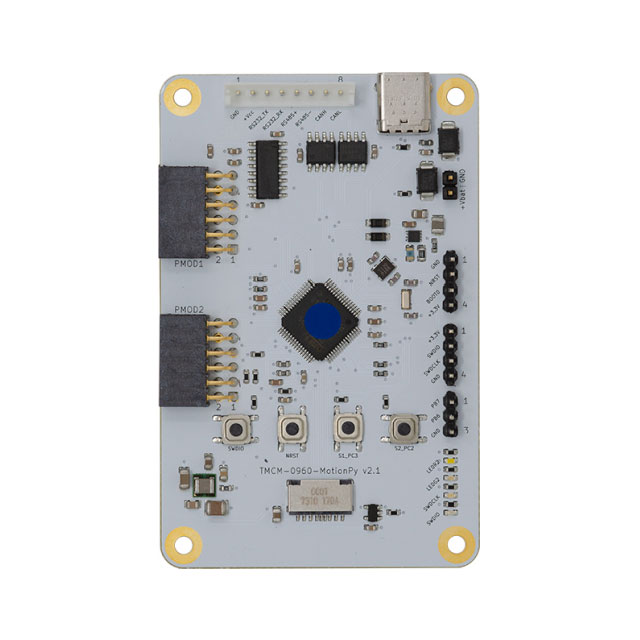

TMCM-0960-MOTIONPY V21
ActiveAnalog Devices Inc./Maxim Integrated
SBC 1 CORE -/- RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-0960-MOTIONPY V21 | TMCM-0960 Series |
|---|---|---|
| Analog Input:Output | 6 | 6 |
| Analog Input:Output | - | 3 |
| Analog Input:Output | - | 3 |
| Expansion Site/Bus | GPIO, SPI, UART, CAN, PMOD | GPIO, SPI, UART, CAN, PMOD |
| Number of Cores | 1 | 1 |
| RAM Capacity/Installed | -/+ | -/+ |
| RS-232 (422, 485) | 1 | 1 |
| Size / Dimension [x] | 3.35 in | 3.35 in |
| Size / Dimension [x] | 3.35 " | 3.35 " |
| Size / Dimension [y] | 55.12 mm | 55.12 mm |
| Size / Dimension [y] | 2.17 in | 2.17 in |
| Storage Interface | microSD | microSD |
| USB | USB-C | USB-C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 91.31 | |
| 10 | $ 73.07 | |||
| 25 | $ 68.42 | |||
| 100 | $ 66.88 | |||
TMCM-0960 Series
SBC 1 CORE -/- RAM
| Part | RS-232 (422, 485) | Storage Interface | Number of Cores | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Analog Input:Output | USB | RAM Capacity/Installed | Expansion Site/Bus | Analog Input:Output [custom] | Analog Input:Output [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-0960-MOTIONPY V21 | 1 | microSD | 1 | 55.12 mm | 3.35 in | 3.35 " | 2.17 in | 6 | USB-C | -/+ | CAN, GPIO, PMOD, SPI, UART | ||
Analog Devices Inc./Maxim Integrated TMCM-0960-MOTIONPY | 1 | 1 | 55.12 mm | 3.35 in | 3.35 " | 2.17 in | USB-C | -/+ | CAN, GPIO, SPI, UART | 3 | 3 |
Description
General part information
TMCM-0960 Series
Single Board Computer 1 Core -/- RAM ARM Cortex-M4, STM32F405RGT6
Documents
Technical documentation and resources
No documents available
