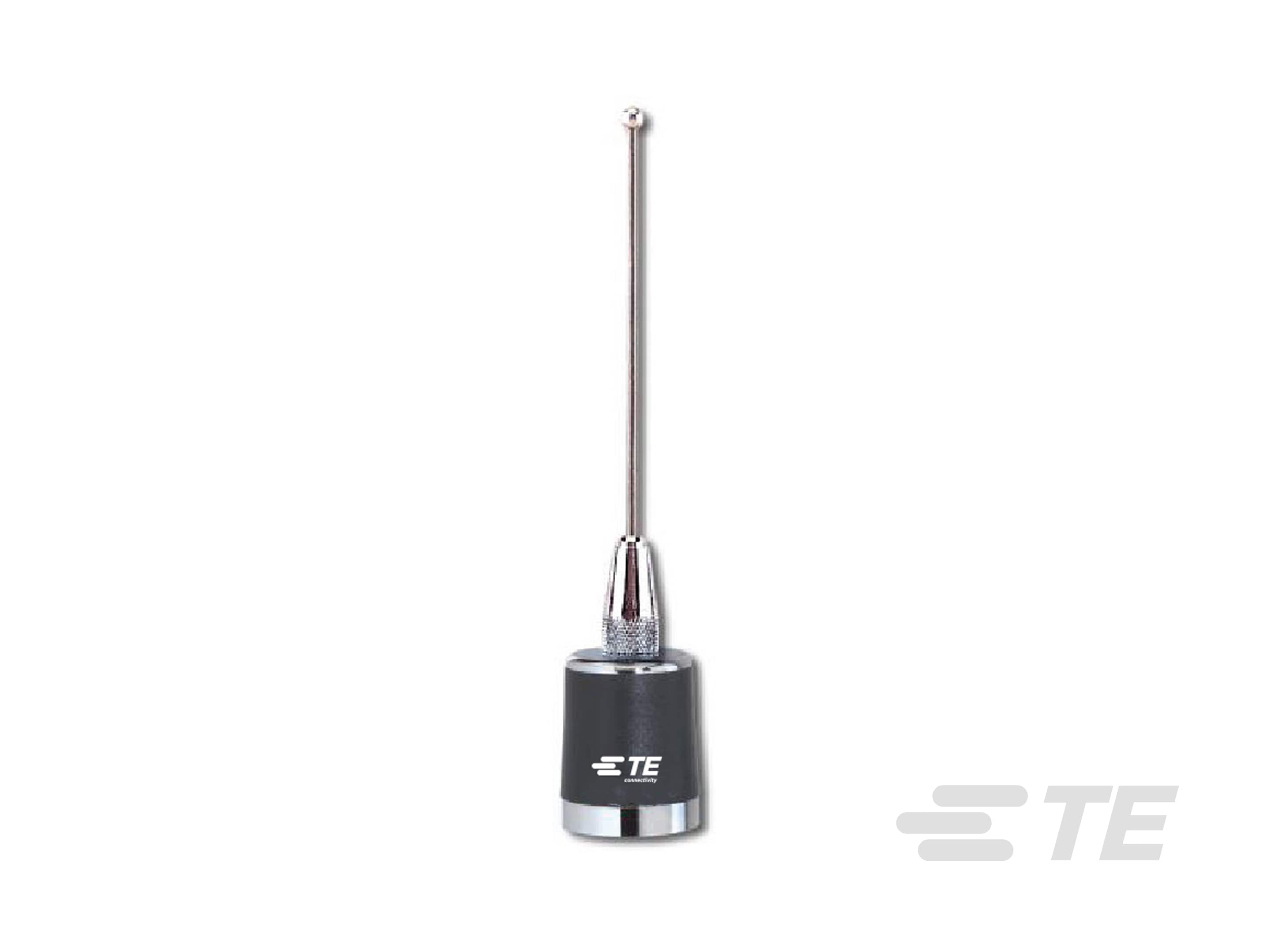

B4503-L
ActiveTE Connectivity AMP Connectors
WHIP,MC,5/8,450-470MHZ, TUN,3,CH,GP,
B4503-L
ActiveTE Connectivity AMP Connectors
WHIP,MC,5/8,450-470MHZ, TUN,3,CH,GP,
Description
General part information
B4503-L
Whip Antenna, Single Band, UHF / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | B4503-L |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 460 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 470 MHz |
| Frequency Range (Min) | 450 MHz |
| Gain | 3 dBi |
| Height (Max) | 13 in |
| Mounting Type | Base Mount |
| Number of Bands | 1 |
| Termination | NMO |
| VSWR | 2 |
