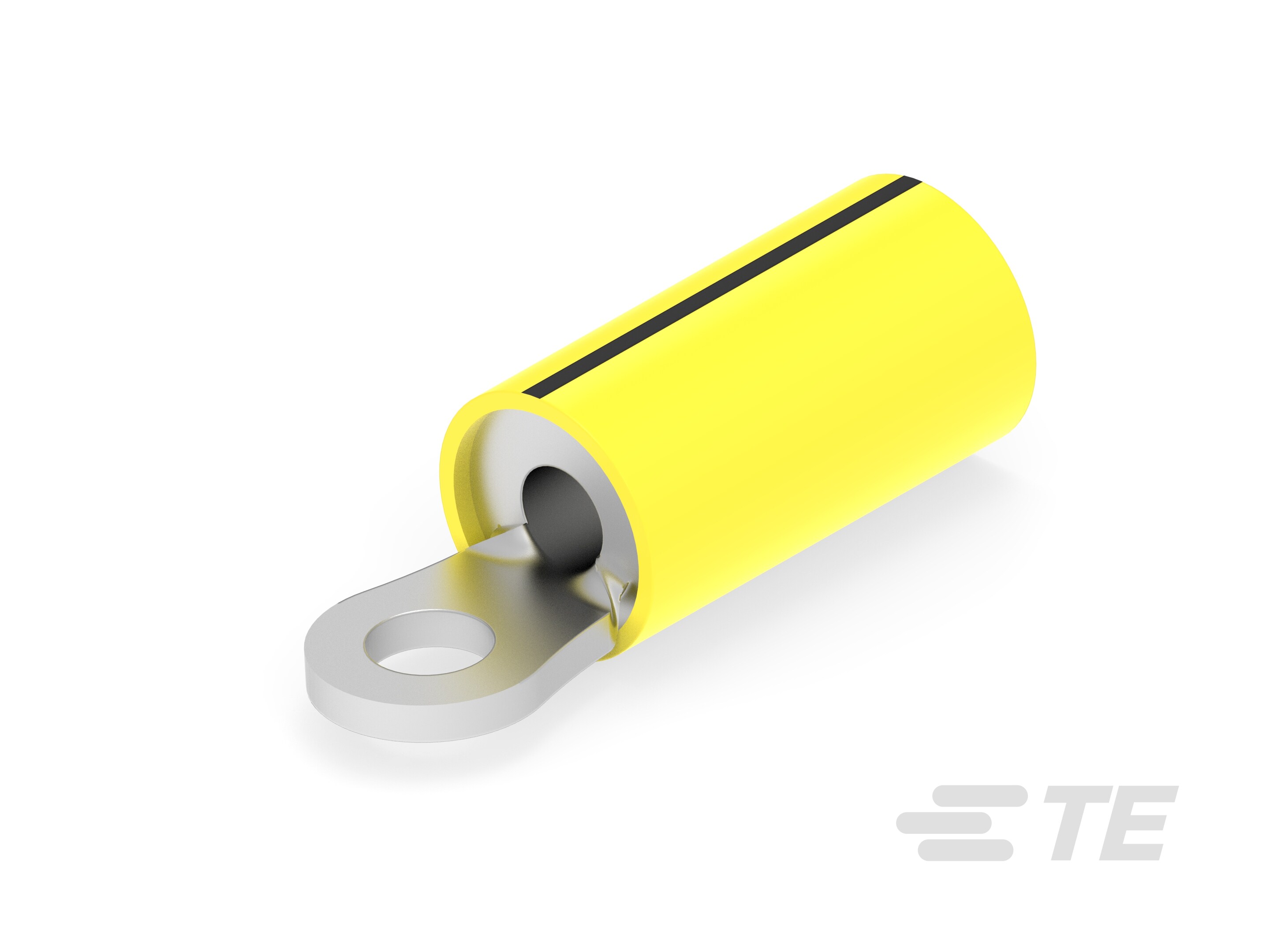

TERMINAL,PIDG R 16-14HD 6-35634

35634

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #6 CRIMP

Find alt
TERMINAL,PIDG R 16-14HD 6-35634

35634

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #6 CRIMP

Find alt

Description

General part information

35634

Closed Ring Tongue Terminal, 16 – 14 AWG, #6 / M3.5 Stud, 3.68 mm [.145 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification35634
ColorBlack Stripe, Yellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Heavy Duty
InsulationInsulated
Length - Overall0.953 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size6 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.281 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
