GLHPDM3-SF-MM
ActiveMcGill Microwave Systems

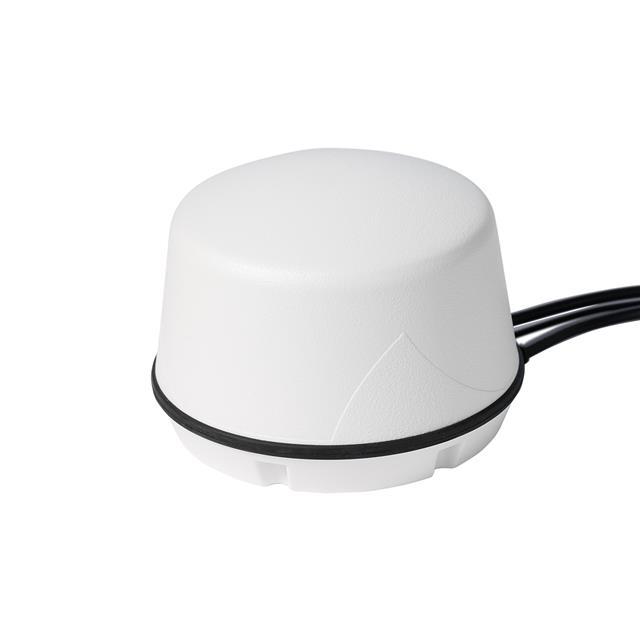

RF ANT 789MHZ DOME RP-SMA MAGN
GLHPDM3-SF-MM
ActiveMcGill Microwave Systems
RF ANT 789MHZ DOME RP-SMA MAGN
Description
General part information
GLHPDM3-SF-MM
789MHz, 1.5865GHz, 2.205GHz, 2.45GHz, 5.4GHz 2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, LTE, Wi-Fi Dome RF Antenna 617MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz 1.5dBi, 3dBic, -2dBic, 3dBi, 4dBi RP-SMA (1), SMA (2) Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | GLHPDM3-SF-MM |
|---|---|
| Antenna Type | Dome |
| Applications | 2G, 5G, Bluetooth, Cellular, Wi-Fi, 3G, GPS, LTE, GNSS |
| Features | Cable, 5.1816m |
| Frequency (Center/Band) | 5.4GHz, 2.45GHz, 789MHz, 2.205GHz, 1.5865GHz |
| Frequency (Center/Band) - 1 | 789 MHz |
| Frequency (Center/Band) - 2 | 1.5865 GHz |
| Frequency (Center/Band) - 3 | 2.205 GHz |
| Frequency (Center/Band) - 4 | 2.45 GHz |
| Frequency (Center/Band) - 5 | 5.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 1.608 GHz |
| Frequency Range (Band 2) Minimum | 1.565 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 1.71 GHz |
| Frequency Range (Band 4) Maximum | 2.5 GHz |
| Frequency Range (Band 4) Minimum | 2.4 GHz |
| Frequency Range (Band 5) Maximum | 5.9 GHz |
| Frequency Range (Band 5) Minimum | 4.9 GHz |
| Gain | 3 dBi, 1.5 dBi, 3 dBic, 4 dBi, -2 dBic |
| Height (Max) | 3.622 in |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Number of Bands | 5 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination Count (SMA) | 2 |
| Termination Type | RP-SMA, SMA |
| VSWR | 2 |
