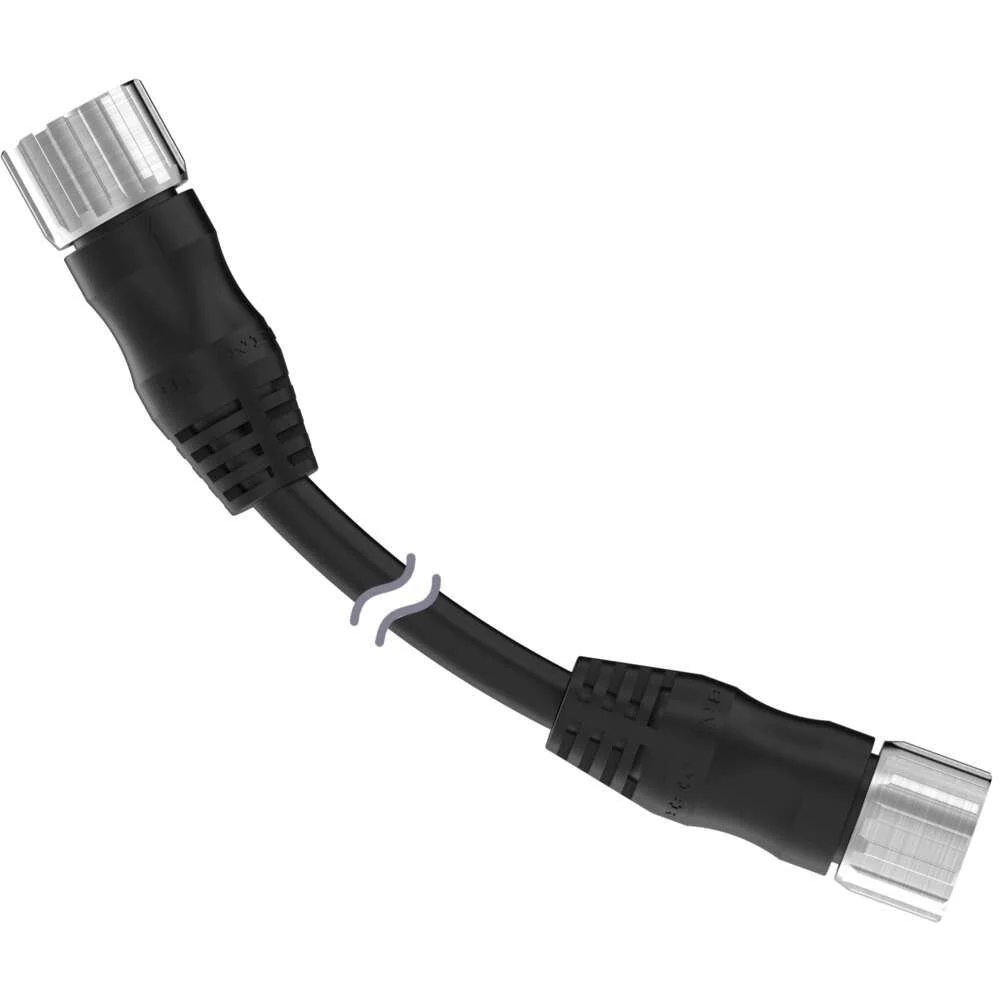

BC-M23F19-M23M19-1822-5
ActiveBANNER ENGINEERING
CORDSET: DOUBLE ENDED M23; 19-PI
BC-M23F19-M23M19-1822-5
ActiveBANNER ENGINEERING
CORDSET: DOUBLE ENDED M23; 19-PI
Description
General part information
BC-M23F19-M23M19-1822-5
CORDSET: DOUBLE ENDED M23; 19-PI
Technical Specifications
Parameters and characteristics for this part
| Specification | BC-M23F19-M23M19-1822-5 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 19 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M23 |
| 1st Connector Type | Plug |
| 2nd Connector Gender | Male Pins |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 19 positions |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert (Code) | M23 |
| 2nd Connector Type | Receptacle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP68, IP67 |
| Length | 16.4 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
