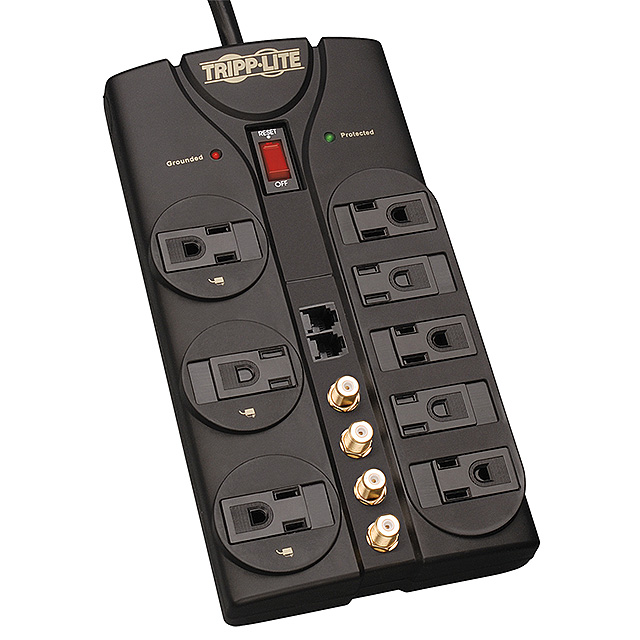

TLP810SAT
ObsoleteEaton Tripp Lite
SURGE PROTECTOR, COAX, TELCO PROTECTION, RJ11, 8 OUTLETS, NEMA 5-15R, 15 A, 120 V, NEMA 5-15P, 3 M
TLP810SAT
ObsoleteEaton Tripp Lite
SURGE PROTECTOR, COAX, TELCO PROTECTION, RJ11, 8 OUTLETS, NEMA 5-15R, 15 A, 120 V, NEMA 5-15P, 3 M
Description
General part information
TLP810SAT
SURGE PROTECTOR, COAX, TELCO PROTECTION, RJ11, 8 OUTLETS, NEMA 5-15R, 15 A, 120 V, NEMA 5-15P, 3 M
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP810SAT |
|---|---|
| AC Outlets (Count) | 8 count |
| Approval Agency | UL, FCC, CSA, cUL |
| Connector - AC Input | NEMA 5-15P |
| Connector - AC Output | NEMA 5-15R |
| Cord Length | 10 ft |
| Current - Max | 15 A |
| Energy | 3240 J |
| Housing Material | Plastic |
| Media Lines Protected | Type F Coax, RJ11 |
| Mounting Type | Bench, Floor, Wall |
| Overload Protection | Circuit Breaker(s) |
| Region Utilized | North America |
| Type | Surge Protector, Power Strip, Outlet Strip |
| Voltage - Input | 120 VAC |
| Weight | 2 lbs |
