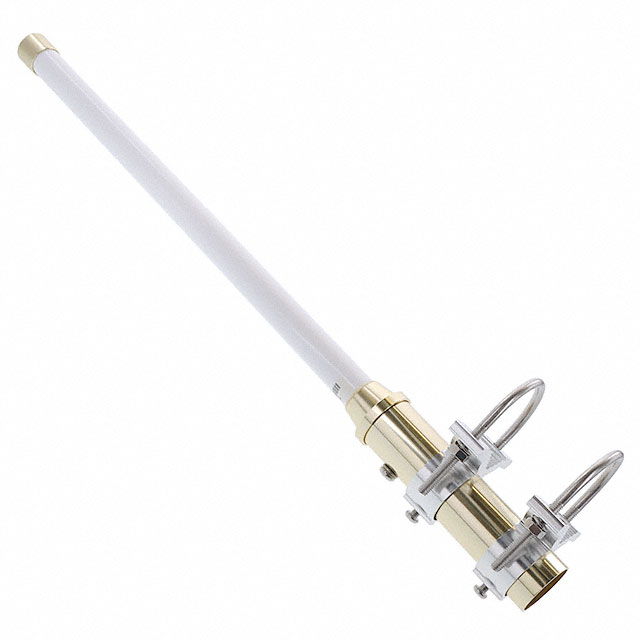

ANT-WS-A-NF-09

Active

ATOP Technologies

RF ANT 2.4GHZ WHIP STR N FEM

Search across all available documentation for this part.

Active

ATOP Technologies

RF ANT 2.4GHZ WHIP STR N FEM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-WS-A-NF-09	ANT-WS Series

Antenna Type	Whip, Straight	Whip, Straight
Applications	Wi-Fi	Wi-Fi
Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Gain	9 dBi	5 - 9 dBi
Mounting Type	Bracket Mount	Bracket Mount, Connector Mount
Number of Bands	1	1
RF Family/Standard	WiFi	WiFi
Termination	N Type Female	N Type Female, RP-SMA Male
VSWR	1.3	1.3 - 2

RF ANT 2.4GHZ WHIP STR N FEM

Part	Applications	Termination	Mounting Type	Number of Bands	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Gain	VSWR	Antenna Type
ATOP Technologies ANT-WS-A-NF-09	Wi-Fi	N Type Female	Bracket Mount	1	WiFi	2.5 GHz	2.4 GHz	9 dBi	1.3	Whip, Straight
ATOP Technologies ANT-WS-AB-RM-05-200	Wi-Fi	RP-SMA Male	Connector Mount	1	WiFi			5 dBi	2	Whip, Straight
ATOP Technologies ANT-WS-AB-RM-05-180	Wi-Fi	RP-SMA Male	Connector Mount	1	WiFi			5 dBi	2	Whip, Straight
ATOP Technologies ANT-WS-A-NF-09-150	Wi-Fi	N Type Female	Bracket Mount	1	WiFi	2.5 GHz	2.4 GHz	9 dBi	1.3	Whip, Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 100.00

General part information

RF ANTENNA Wi-Fi Whip, Straight N Type Female Bracket Mount

Technical documentation and resources

No documents available
