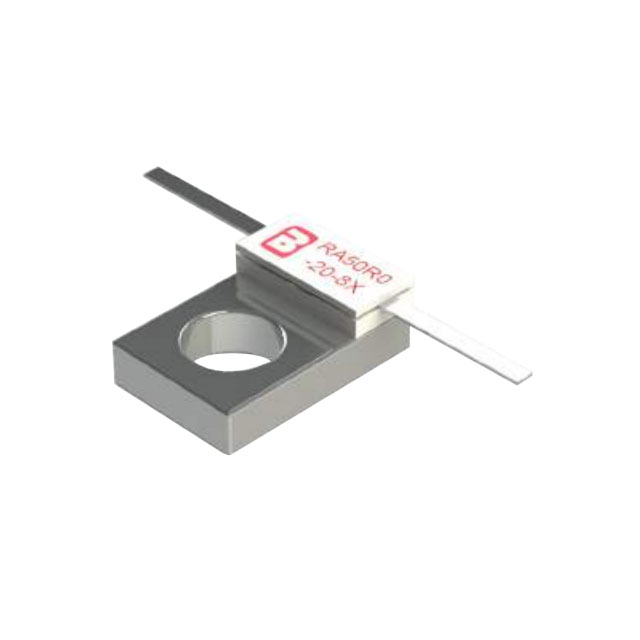

RA50R0-20-8X
ActiveVishay Dale
20W (50 OHM) ALN FLANGED RESISTO
RA50R0-20-8X
ActiveVishay Dale
20W (50 OHM) ALN FLANGED RESISTO
Description
General part information
RA50R0-20-8X
50 Ohms ±5% 20W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RA50R0-20-8X |
|---|---|
| Coating | Aluminum |
| Composition | Thick Film |
| Height - Seated (Max) | 0.14 in |
| Housing Type | Aluminum |
| Lead Style | Tab |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 20 W |
| Resistance | 50 Ohms |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.2 in |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
