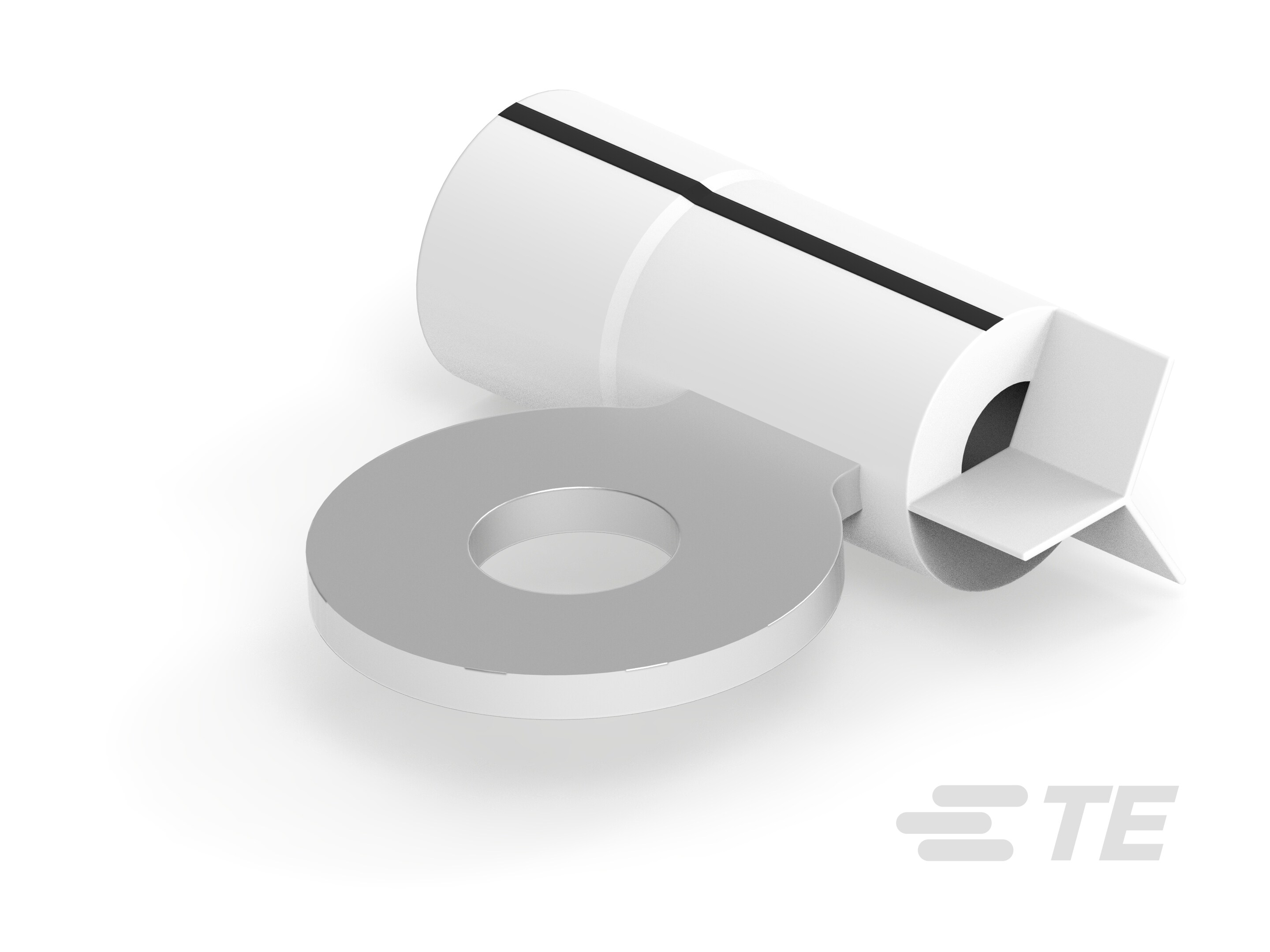

TERMINAL,PI FLAG R 16-14HD 14-322313

322313

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL 14-16AWG COPPER NATURAL/BLACK STRIPE 19.68MM TIN BOX

Find alt
TERMINAL,PI FLAG R 16-14HD 14-322313

322313

Active
TE Connectivity AMP Connectors

RING TONGUE TERMINAL 14-16AWG COPPER NATURAL/BLACK STRIPE 19.68MM TIN BOX

Find alt

Description

General part information

322313

Closed Ring Tongue Terminal, 16 – 14 AWG, #14 Stud, 6.14 mm [.242 in] Stud Diameter, Closed Barrel, Flag, Tin Plating, PLASTI-GRIP

Technical Specifications

Parameters and characteristics for this part

Specification322313
ColorNatural, Black Stripe
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Heavy Duty
InsulationInsulated
Length - Overall0.81 in
Mounting TypeRight Angle, Free Hanging (In-Line)
Stud/Tab Size14 Stud
Terminal TypeCircular
TerminationFlag, Crimb
Thickness0.048 in
Width - Outer Edges0.5 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
