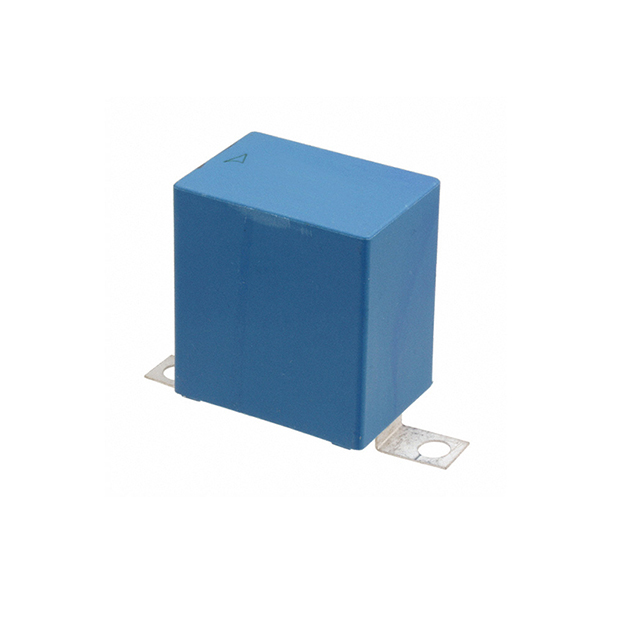

Specification	B32656S0684K562

Applications	High Pulse, DV/DT, Snubber
Capacitance	0.68 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6.5 mOhm
Features	Low ESL
Height - Seated (Max)	1.122 in
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-55 °C
Package / Case	Rectangular Box
Size / Dimension Length	1.654 in
Size / Dimension Width	0.63 in
Termination	Screw Terminals
Tolerance	10 %
Voltage Rating - AC	480 VAC
Voltage Rating - DC	1 kV
