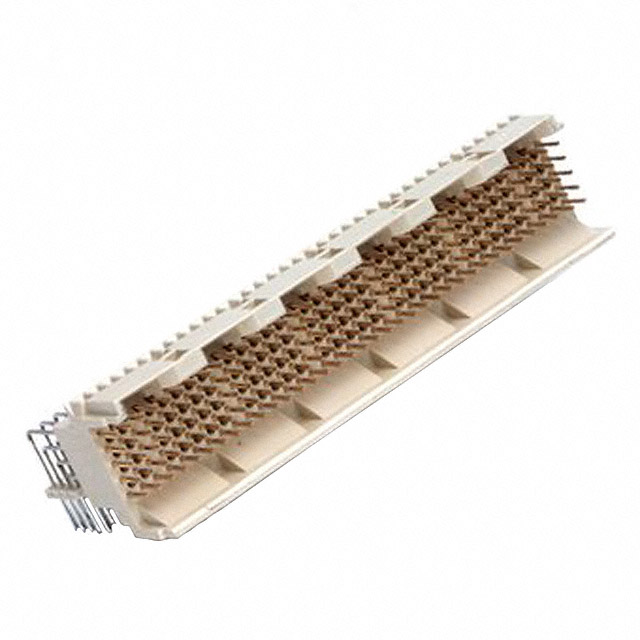

MP2-P120-51M1-KR
Active3M
CONN HDR FUTUREBUS+ 120P EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMetPak™ MP2 Series Spec
MP2-P120-51M1-KR
Active3M
CONN HDR FUTUREBUS+ 120P EDGE MT
Deep-Dive with AI
DocumentsMetPak™ MP2 Series Spec
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MP2-P120-51M1-KR | MP2-P120 Series |
|---|---|---|
| Color | Beige | Beige |
| Connector Style | Futurebus+® | Futurebus+® |
| Connector Type | Header, Male Pins | Header, Male Pins |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.076 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 3 - 30 Áin |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Features | Board Guide, Inverse | Board Guide, Inverse |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 120 | 120 |
| Number of Positions Loaded | All | All |
| Number of Rows | 5 | 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Solder | Solder |
MP2-P120 Series
CONN HARD METRIC HDR 120 POS 2MM SOLDER RA THRU-HOLE TUBE
| Part | Connector Usage | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish | Connector Style | Mounting Type | Number of Positions | Features | Current Rating (Amps) | Termination | Number of Rows | Color | Number of Positions Loaded | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Backplane | -55 °C | 125 °C | Header, Male Pins | Gold | Futurebus+® | Board Edge, Right Angle, Through Hole | 120 | Board Guide, Inverse | 1.5 A | Solder | 5 | Beige | All | UL94 V-0 | 3 Áin | 0.076 Ám | 0.079 in | 2 mm | |
Backplane | -55 °C | 125 °C | Header, Male Pins | Gold | Futurebus+® | Board Edge, Right Angle, Through Hole | 120 | Board Guide, Inverse | 1.5 A | Solder | 5 | Beige | All | UL94 V-0 | 30 Áin | 0.76 Ám | 0.079 in | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MP2-P120 Series
120 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Beige Futurebus+®
