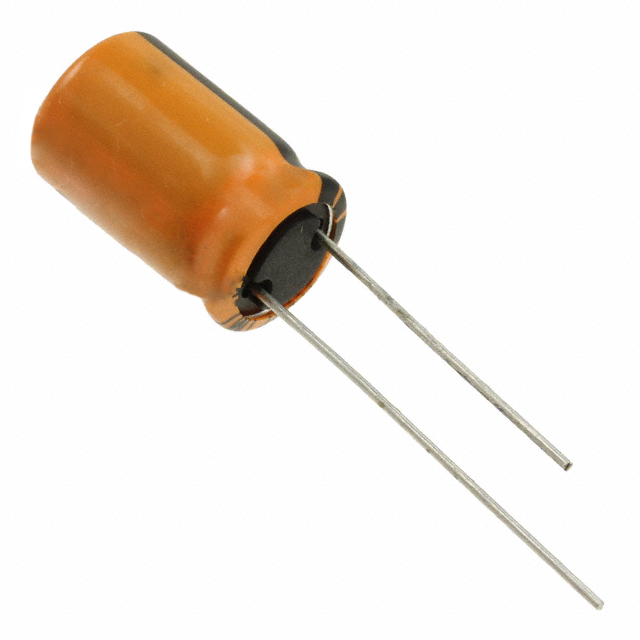

B41858C9336M000
ActiveEPCOS - TDK Electronics
CAP ALUM 33UF 20% 100V RADIAL TH
B41858C9336M000
ActiveEPCOS - TDK Electronics
CAP ALUM 33UF 20% 100V RADIAL TH
Description
General part information
B41858C9336M000
33 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 654mOhm @ 10kHz 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B41858C9336M000 |
|---|---|
| Applications | Automotive |
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 654 mOhm |
| Height - Seated (Max) | 0.669 in |
| Impedance | 589 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 357 mA |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
