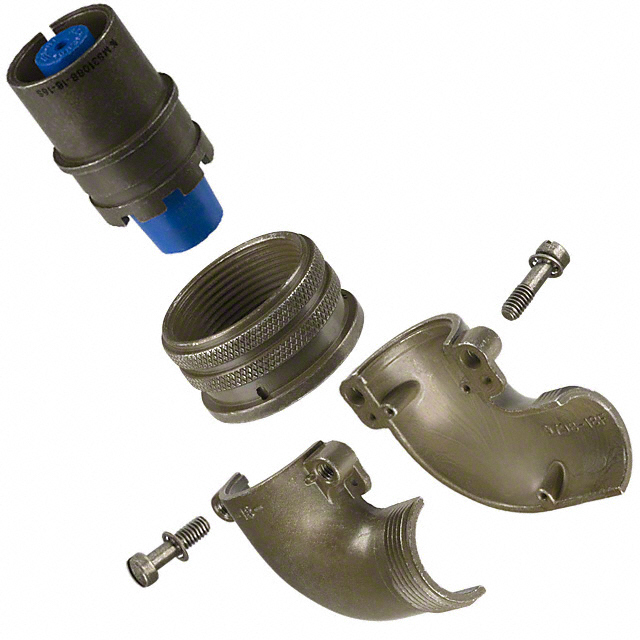

Specification	97-3108B-18-16S

Applications	Automotive, Industrial
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Threaded
Features	Rotatable, Coupling Nut
Insert Material	Diallyl Phthalate, DAP
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	18 mm
Shell Size - Insert Width	16 mm
Shielding	Unshielded
Termination	Solder Cup

97-3108B18 Series

Part	Termination	Orientation	Fastening Type	Connector Type	Mounting Type	Color	Contact Material	Number of Positions	Shielding	Shell Material	Shell Size - Insert Width	Shell Size - Insert Length	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Features	Primary Material	Insert Material	Backshell Material	Plating	Contact Finish - Mating	Applications
Amphenol Aerospace Operations 97-3108B18-4PW-417	Solder Cup	W	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	4	Unshielded	Aluminum Alloy	4 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-1S(946)	Solder Cup	N (Normal)	Threaded	Female Sockets Plug	Free Hanging (In-Line) Right Angle	Black	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Black Zinc Alloy	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-12PZ-417	Solder Cup	Z	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	6	Unshielded	Aluminum Alloy	12 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-1PY-417	Solder Cup	Y	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-1P	Solder Cup	N (Normal)	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-8P(946)	Solder Cup	N (Normal)	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Black	Copper Alloy	8	Unshielded	Aluminum Alloy	8 mm	18 mm	Black Zinc Alloy	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-1P-417	Solder Cup	N (Normal)	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-4PY	Solder Cup	Y	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	4	Unshielded	Aluminum Alloy	4 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B-18-11S	Solder Cup	N (Normal)	Threaded	Female Sockets Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	5	Unshielded	Aluminum Alloy	11 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut Rotatable	Metal	DAP Diallyl Phthalate			Silver	Automotive Industrial
Amphenol Aerospace Operations 97-3108B18-1PZ	Solder Cup	Z	Threaded	Male Pins Plug	Free Hanging (In-Line) Right Angle	Olive Drab	Copper Alloy	10	Unshielded	Aluminum Alloy	1 mm	18 mm	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut	Metal	DAP Diallyl Phthalate	Aluminum Alloy	Olive Drab Chromate over Cadmium	Silver	Automotive Industrial
