601D826F200FL1
UnknownVishay Dale
82UF 250V 16.1X54.4 105 AXI
601D826F200FL1
UnknownVishay Dale
82UF 250V 16.1X54.4 105 AXI
Description
General part information
601D826F200FL1

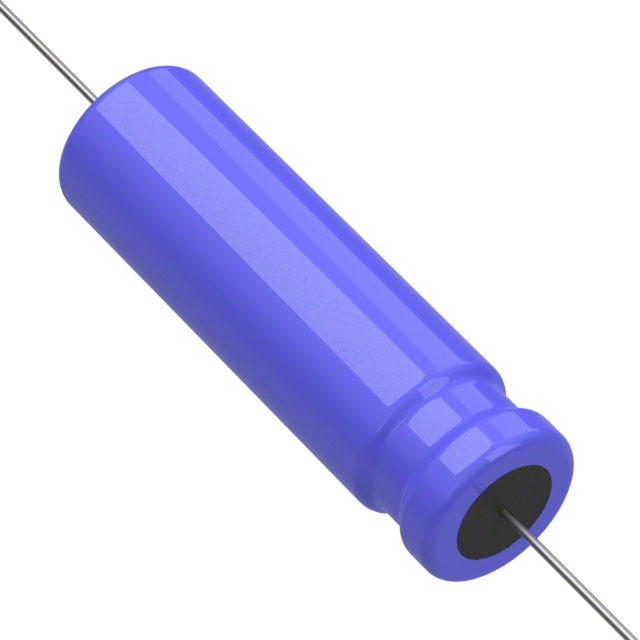

82 µF 200 V Aluminum Electrolytic Capacitors Axial, Can 1.242Ohm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 601D826F200FL1 |
|---|---|
| Applications | General Purpose |
| Capacitance | 82 µF |
| ESR (Equivalent Series Resistance) | 1.242 Ohm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 680 mA |
| Size / Dimension Diameter | 0.634 in |
| Size / Dimension Length | 2.142 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 200 VDC |
