1127.2
ActiveConta-Clip, Inc.
CONN TERM BLK FEED THRU 14-22AWG
1127.2
ActiveConta-Clip, Inc.
CONN TERM BLK FEED THRU 14-22AWG
Description
General part information
1127.2

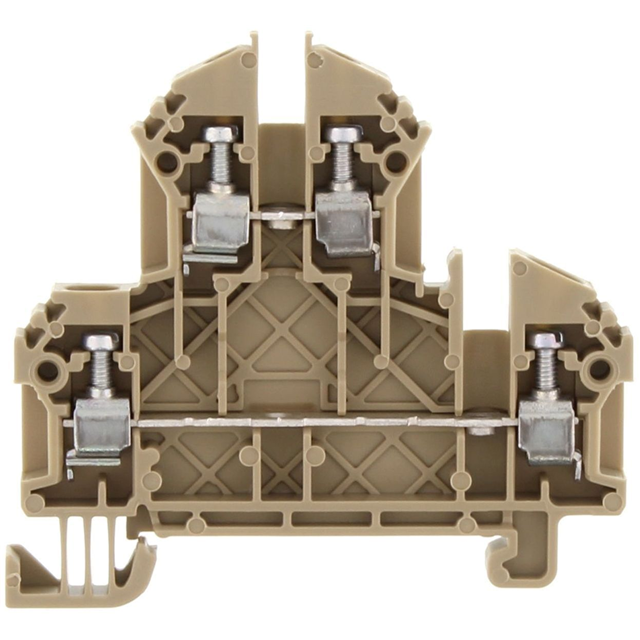

Terminal Block Connector 4 Position Feed Through Beige 14-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1127.2 |
|---|---|
| Color | Beige |
| Current - IEC | 24 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 7 mm |
| Terminal Width | 5 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
