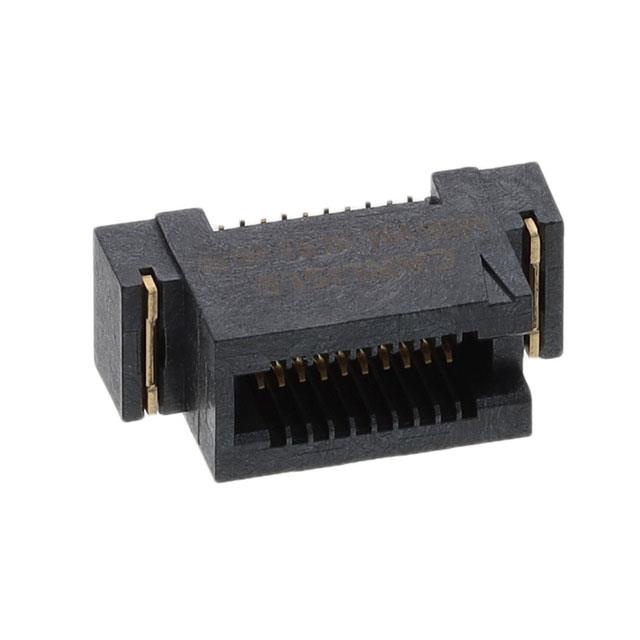

MBB-VM-10-93-30-ST

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 20POS 0.031

Search across all available documentation for this part.

Obsolete

CarlisleIT

CONN EDGE DUAL FMALE 20POS 0.031

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBB-VM-10-93-30-ST	MBB-VM-10 Series

Card Thickness	0.093 in	0.062 - 0.093 in
Card Thickness	2.36 mm	1.57 - 2.36 mm
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Cantilever	Cantilever
Features	Solder Retention, Board Guide	Board Guide, Solder Retention
Gender	Female	Female
Mounting Type	Surface Mount	Surface Mount
Number of Positions	20	20
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.8 mm	0.8 mm
Pitch [x]	0.031 in	0.031 in
Read Out	Dual	Dual
Termination	Solder	Solder

CONN EDGE DUAL FMALE 20POS 0.031

Part	Number of Positions	Card Thickness	Card Thickness	Read Out	Contact Type	Termination	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Gender	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Features
CarlisleIT MBB-VM-10-93-30-00	20	0.093 in	2.36 mm	Dual	Cantilever	Solder	0.8 mm	0.031 in	Gold	Surface Mount	Female	Black	Non Specified - Dual Edge	0.76 Ám	30 Áin	2	-55 °C	125 °C	Board Guide
CarlisleIT MBB-VM-10-62-30-00	20	0.062 in	1.57 mm	Dual	Cantilever	Solder	0.8 mm	0.031 in	Gold	Surface Mount	Female	Black	Non Specified - Dual Edge	0.76 Ám	30 Áin	2	-55 °C	125 °C	Board Guide
CarlisleIT MBB-VM-10-93-30-ST	20	0.093 in	2.36 mm	Dual	Cantilever	Solder	0.8 mm	0.031 in	Gold	Surface Mount	Female	Black	Non Specified - Dual Edge	0.76 Ám	30 Áin	2	-55 °C	125 °C	Board Guide, Solder Retention
