CS2N9MF-6
ActiveCOMPUTER CABLE, D SUB 9 POSITION PLUG, D SUB 9 POSITION RECEPTACLE, 6 FT, 1.8 M, GRAY
CS2N9MF-6
ActiveCOMPUTER CABLE, D SUB 9 POSITION PLUG, D SUB 9 POSITION RECEPTACLE, 6 FT, 1.8 M, GRAY
Description
General part information
CS2N9MF-6

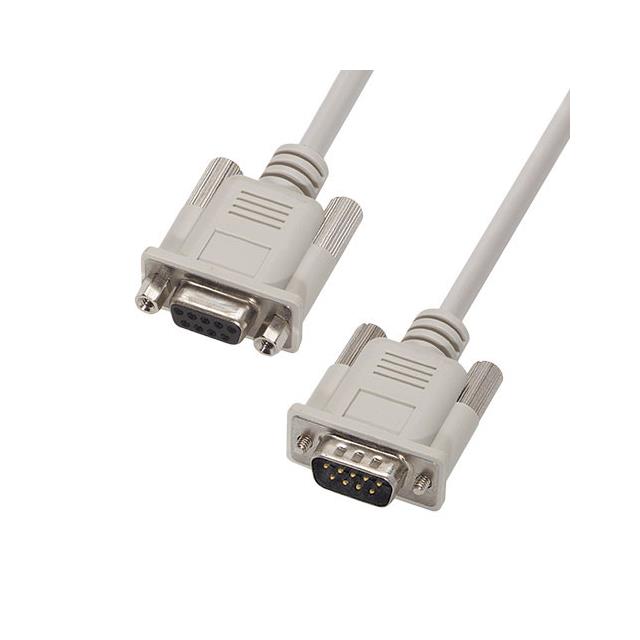

The CS2N9MF-6 is a premium molded D-sub Cable Assembly with DB9 male to female connection. This gray cable assembly provides maximum protection against data corrupting EMI/RFI. Double shielded cable (copper braid plus aluminum Mylar foil) and a custom steel internal enclosure separate this cable from any off the shelf D-sub cable on the market. It is ideal for any electrically noisy environment where fans, motors or switches are nearby. Custom lengths and pinouts are available with modest minimum requirements.
Technical Specifications
Parameters and characteristics for this part
| Specification | CS2N9MF-6 |
|---|---|
| 1st Connector | Female Sockets, Receptacle |
| 2nd Connector | Male Pins, Plug |
| Color | Gray, Individual (Round) |
| Contact Finish | Gold |
| Length | 6 ft |
| Number of Positions | 9 |
| Shielding | Shielded |
| Type | DB9 |
