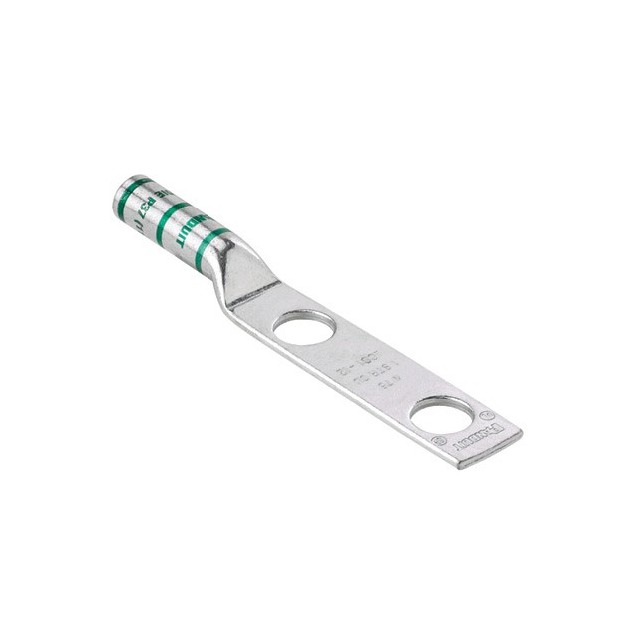

LCC4/0-56D-X
ObsoletePanduit Corp
CONN TERM RECT TONG 4/0AWG #5/16
LCC4/0-56D-X
ObsoletePanduit Corp
CONN TERM RECT TONG 4/0AWG #5/16
Description
General part information
LCC4/0-56D-X
CONN TERM RECT TONG 4/0AWG #5/16
Technical Specifications
Parameters and characteristics for this part
| Specification | LCC4/0-56D-X |
|---|---|
| Color | Purple |
| Insulation | Non-Insulated |
| Length - Overall | 3.92 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Tab Thickness | 0.14 in |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 1.06 in |
| Wire Gauge | 4/0 AWG |
