053W,AL

Active

Serpac

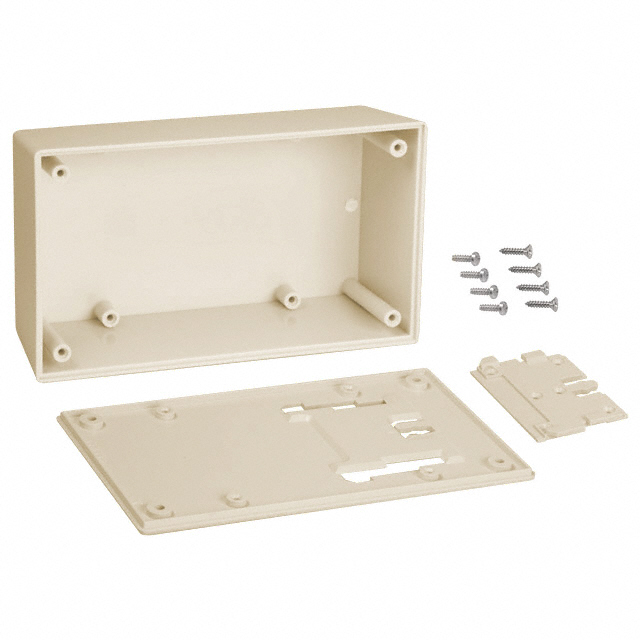

BOX ABS ALMOND 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	053W,AL

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Almond
Container Type	Box
Features	PCB Supports, Wall Mount
Height [z]	48.26 mm
Height [z]	1.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.231 lb
Weight	104.78 g

Part	Features	Material Flammability Rating	Thickness	Thickness	Height [z]	Height [z]	Weight	Weight	Material	Area (L x W)	Area (L x W)	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color	Design
Serpac 053W,AL	PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	48.26 mm	1.9 in	0.231 lb	104.78 g	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Almond
Serpac 053W,BK	PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	48.26 mm	1.9 in	0.231 lb	104.78 g	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Black
Serpac 053WI,BK	PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	48.26 mm	1.9 in	0.231 lb	104.78 g	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Black	Cover Included Hand Held
Serpac 053WI,AL	PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	48.26 mm	1.9 in	0.231 lb	104.78 g	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Almond
Serpac 053WI,GY	PCB Supports Wall Mount	UL94 HB	2.54 mm	0.1 in	48.26 mm	1.9 in	0.231 lb	104.78 g	Plastic ABS	18.3 in²	118 cm²	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	Box	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.69

General part information

Box Plastic, ABS Almond 5.620" L x 3.250" W (142.75mm x 82.55mm) X 1.900" (48.26mm)

Technical documentation and resources

No documents available
