M12-FS-8CON-PG9-MU-1SET310219R0000

T4110002081-000

Active
TE Connectivity AMP Connectors

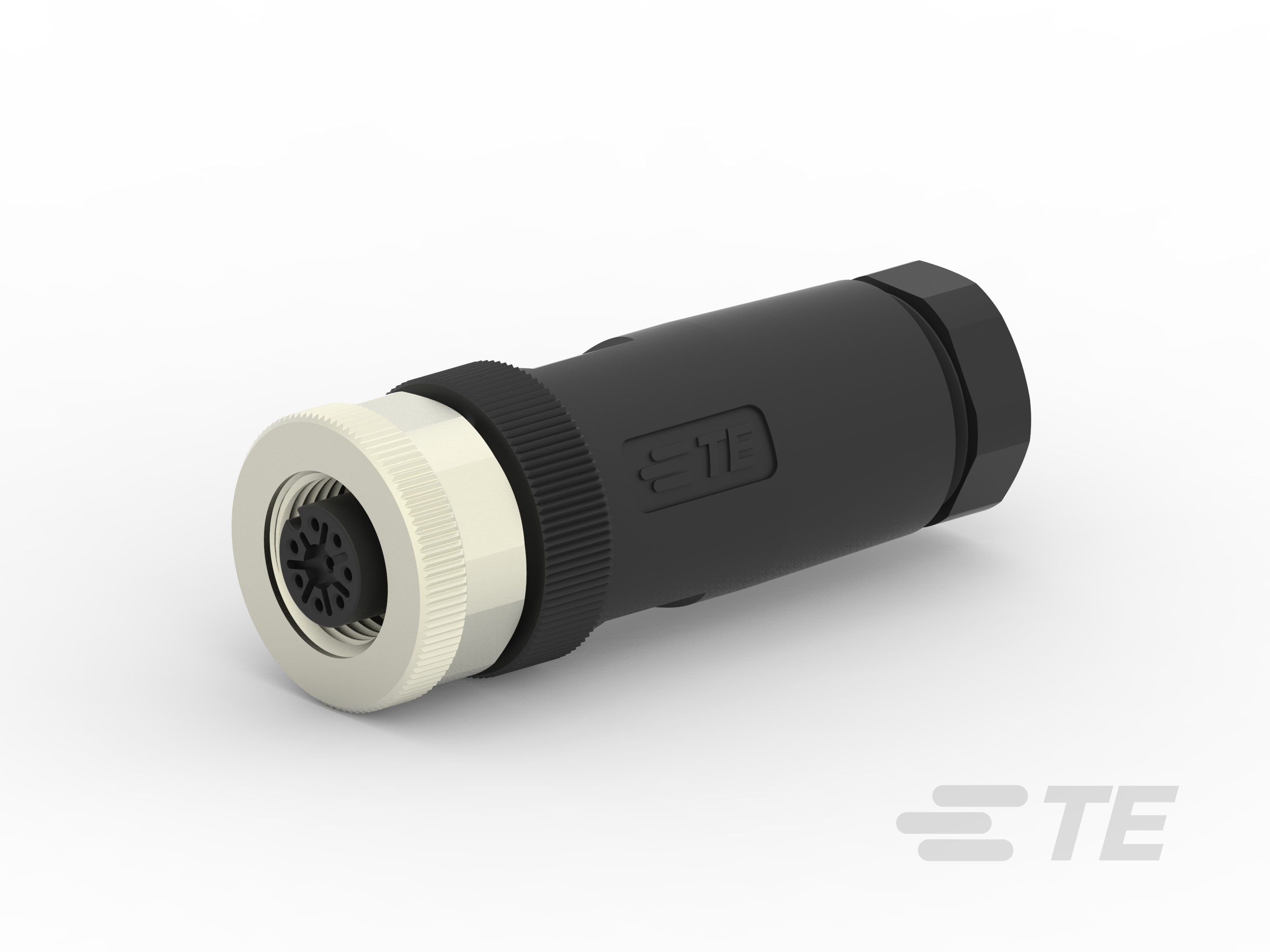

SENSOR CONNECTOR, PG9/6-8MM, M12, FEMALE, 8 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT

Find alt
M12-FS-8CON-PG9-MU-1SET310219R0000

T4110002081-000

Active
TE Connectivity AMP Connectors

SENSOR CONNECTOR, PG9/6-8MM, M12, FEMALE, 8 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT

Find alt

Description

General part information

T4110002081-000

The T4110002081-000 from TE Connectivity is aM12, straight female, A code, PG9, standard circular connector. This connector has plastic shell type with 20 shell size, PBT shell and PA66+GF25 insulation material.

Technical Specifications

Parameters and characteristics for this part

SpecificationT4110002081-000
Cable Opening (Max)0.315 in
Cable Opening (Min)0.236 in
ColorBlack, Silver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Current Rating2 A
Fastening TypeThreaded
FeaturesCoupling Nut, Backshell
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM12-8
ShieldingUnshielded
TerminationScrew
Voltage Rating30 V
