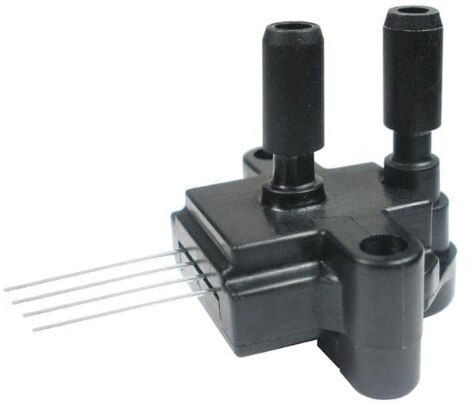

Specification	SSCSNBN004NDAA5

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	10.84 PSI
Mounting Type	Through Hole
Operating Pressure	0.15 PSI
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Type	Analog Voltage
Output Voltage (Max)	4.5 V
Output Voltage (Min)	0.5 V
Package / Case	4-SIP, Same Side, Dual Ports
Package Name	4-SIP
Port Diameter	0.19 "
Port Feature	Tube, Dual
Port Gender	Male
Port Style	Barbless
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply (Maximum)	5.05 V
Voltage - Supply (Minimum)	4.95 V

SSC Series

Part	Pressure Type	Applications	Output Type	Package Name	Mounting Type	Features	Operating Pressure	Accuracy	Maximum Pressure	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Output Voltage (Min)	Output Voltage (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Port Style	Termination Style
Honeywell Sensing and Productivity Solutions SSCSMNN010KGAF5	Vented Gauge	Board Mount	Analog Voltage	4-SIP	Through Hole	Amplified Output Temperature Compensated	1.45 PSI	0.25 %	12.33 PSI	5.25 V	4.75 V	4-SIP Module	0.2 V	4.7 V	-40 °C	85 °C	No Port	PC Pin
Honeywell Sensing and Productivity Solutions SSCSMNN001BGAA5	Vented Gauge	Board Mount	Analog Voltage	4-SIP	Through Hole	Amplified Output Temperature Compensated	14.5 PSI	0.25 %	29.01 PSI	5.25 V	4.75 V	4-SIP Module	0.5 V	4.5 V	-40 °C	85 °C	No Port	PC Pin
