BR500-15RJ8
ActiveBourns Inc.
RES CHAS MNT 15 OHM 5% 500W
BR500-15RJ8
ActiveBourns Inc.
RES CHAS MNT 15 OHM 5% 500W
Description
General part information
BR500-15RJ8

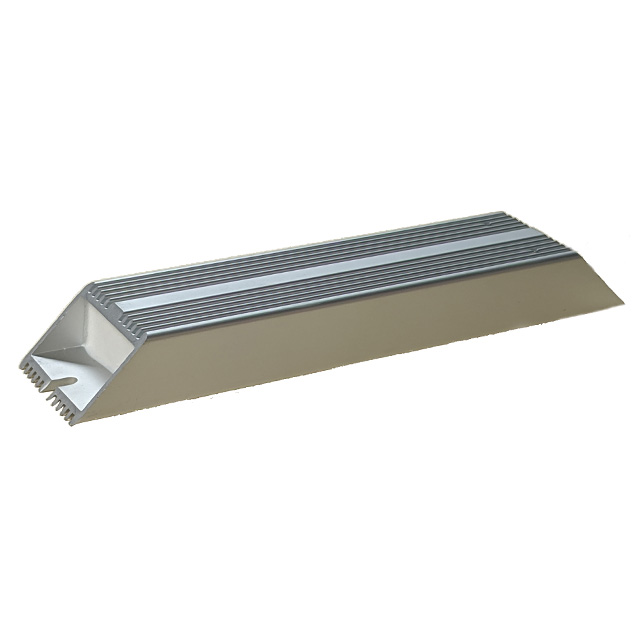

15 Ohms ±5% 500W Metal Clad Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | BR500-15RJ8 |
|---|---|
| Composition | Metal Clad |
| Features | Moisture Resistant |
| Height - Seated (Max) | 1.201 in |
| Lead Style | Quick Connects |
| Lead Style Length | 0.25 in |
| Mounting Feature | Brackets |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Rectangular Case, Radial |
| Power (Watts) | 500 W |
| Resistance | 15 Ohm |
| Size / Dimension Length | 13.189 in |
| Size / Dimension Width | 2.362 in |
| Temperature Coefficient | 260 ppm/°C |
| Temperature Coefficient (Highest) | 260 ppm/°C |
| Temperature Coefficient (Lowest) | -260 ppm/°C |
| Tolerance | 5 % |
