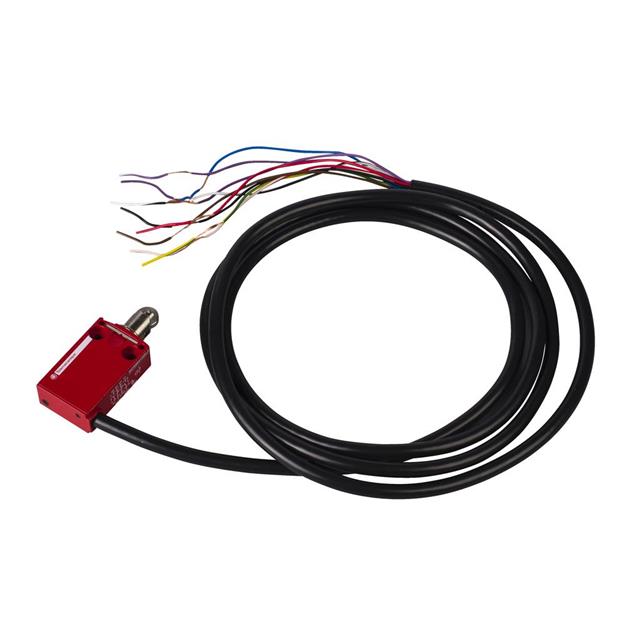

XCSM4102L2
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROLLER PLUNGER, DPST-NO, DPST-NC, 1.5 A, 240 V, 35 N, PREVENTA XCS SERIES
XCSM4102L2
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ROLLER PLUNGER, DPST-NO, DPST-NC, 1.5 A, 240 V, 35 N, PREVENTA XCS SERIES
Description
General part information
XCSM4102L2
Switch 4PST-2NO/2NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSM4102L2 |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | 4PST-2NO/2NC |
| Current Rating | 100 mA, 1.5 A |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP66, IP67, IP68 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
