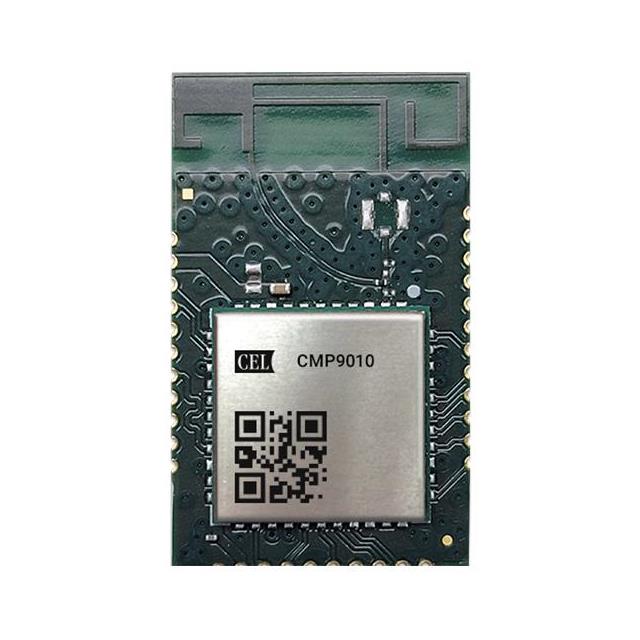

CMP9010-2-B
ObsoleteRenesas Electronics Corporation
RF TXRX MOD BT WIFI TH SMD
CMP9010-2-B
ObsoleteRenesas Electronics Corporation
RF TXRX MOD BT WIFI TH SMD
Description
General part information
CMP9010-2-B
Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v5.1 Transceiver Module Integrated, Trace Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CMP9010-2-B |
|---|---|
| Antenna Type | Integrated, Trace |
| Data Rate | 150 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 20 dBm |
| Protocol | 802.11a, 802.11n, 802.11b, 802.11g, Bluetooth v5.1 |
| RF Family/Standard | WiFi, Bluetooth |
| Serial Interfaces | SDIO, UART |
| Utilized IC / Part | NXP IW416 |
