MACC0320
ActiveMagnetics, a division of Spang & Co.
FERRITE CORE U AMORPHOUS
MACC0320
ActiveMagnetics, a division of Spang & Co.
FERRITE CORE U AMORPHOUS
Description
General part information
MACC0320

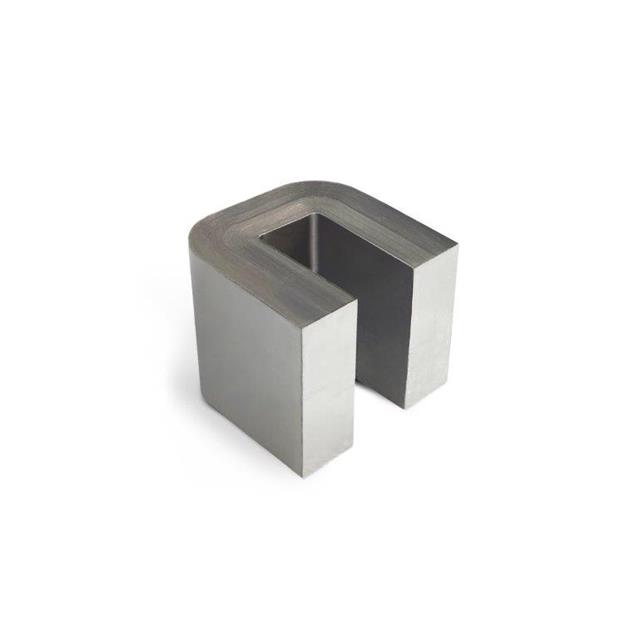

Uncoated Amorphous Ferrite Core U Type 3.110" (79.00mm) Length 1.969" (50.00mm) Width Diameter 2.579" (65.50mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | MACC0320 |
|---|---|
| Core Type | U |
| Effective Area (Ae) | 950 mm² |
| Effective Length (le) | 305 mm |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 2.579 in |
| Length | 3.11 in |
| Material | Amorphous |
| Width | 1.969 in |
