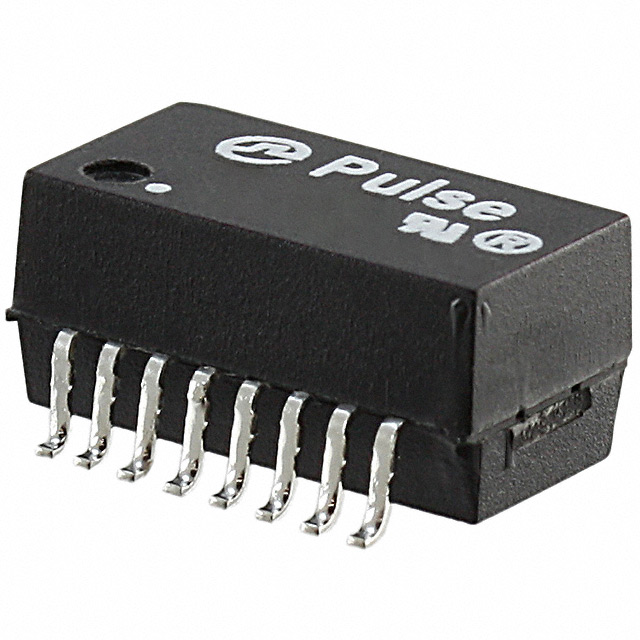

T1144NLT
ActivePulse Electronics
XFRMR 1CT:1CT/1CT:2.4CT 1/1MH
T1144NLT
ActivePulse Electronics
XFRMR 1CT:1CT/1CT:2.4CT 1/1MH
Description
General part information
T1144NLT
1mH, 1mH T1/E1 (Dual) Pulse Transformer 1CT:1CT, 1CT:2.4CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | T1144NLT |
|---|---|
| Height - Seated (Max) | 0.245 in |
| Inductance | 1 mH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.28 in |
| Transformer Type | T1, E1 (Dual) |
| Turns Ratio - Primary:Secondary | 1CT:1CT, 1CT:2.4CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
