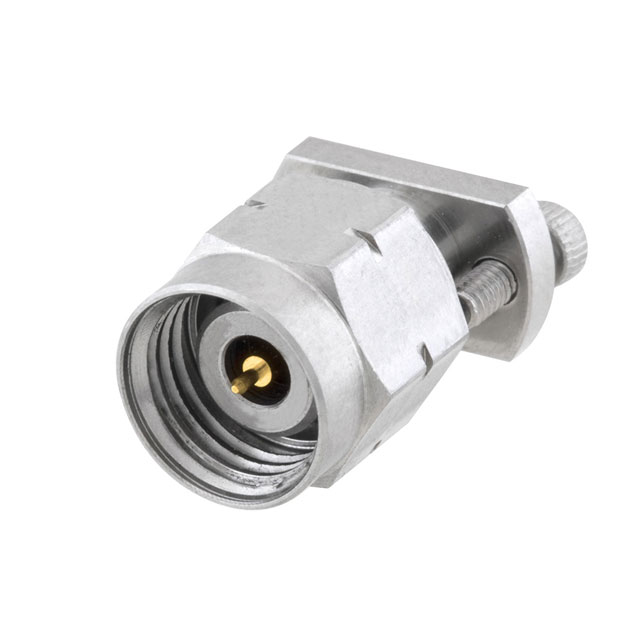

PE45456
ActivePasternack
2.4(M) PCB VERT LAUNCH STRPLN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE45456
ActivePasternack
2.4(M) PCB VERT LAUNCH STRPLN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45456 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | OS-50 |
| Connector Style | 2.4 mm |
| Connector Style | APC-2.4 |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Features | Mounting Hardware |
| Frequency - Max [Max] | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Shield Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.99 | |
| 25 | $ 20.89 | |||
| 50 | $ 19.79 | |||
| 100 | $ 18.91 | |||
Description
General part information
PE45456
2.4mm (APC-2.4, OS-50) Connector Receptacle, Male Pin 50 Ohms Panel Mount Compression
