02210100
ActiveBopla Enclosures
BOX PLASTIC 3.23"L X 3.15"W
02210100
ActiveBopla Enclosures
BOX PLASTIC 3.23"L X 3.15"W
Description
General part information
02210100

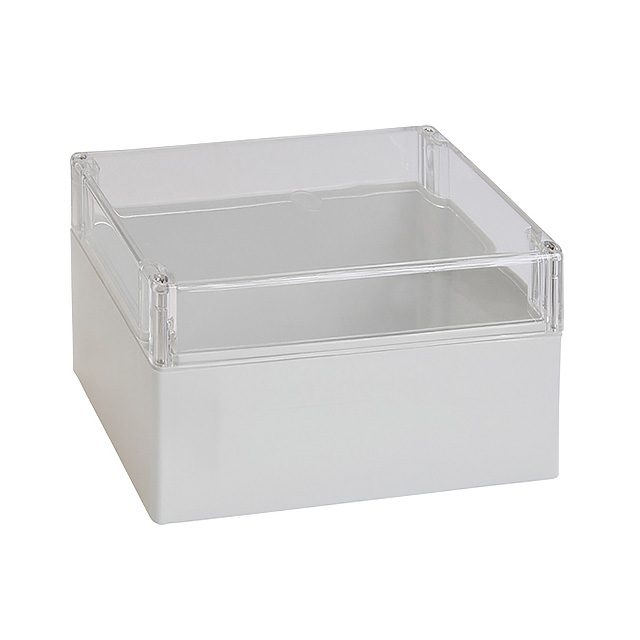

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 3.228" L x 3.150" W (82.00mm x 80.00mm) X 2.165" (55.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 02210100 |
|---|---|
| Area (L x W) | 10.3 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 2.165 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | UL-508, IP66, NEMA 4X |
| Size / Dimension Length | 3.228 in |
| Size / Dimension Width | 3.15 in |
| Weight | 0.3 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
