VCUT15A1-SD0-G4-08
ObsoleteVishay General Semiconductor - Diodes Division
ESD PROTECTION DIODE CLP060315V;
VCUT15A1-SD0-G4-08
ObsoleteVishay General Semiconductor - Diodes Division
ESD PROTECTION DIODE CLP060315V;
Description
General part information
VCUT15A1-SD0-G4-08
26V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount CLP0603
Technical Specifications
Parameters and characteristics for this part
| Specification | VCUT15A1-SD0-G4-08 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 1 |
| Capacitance | 5.5 pF |
| Current - Peak Pulse | 2.5 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |

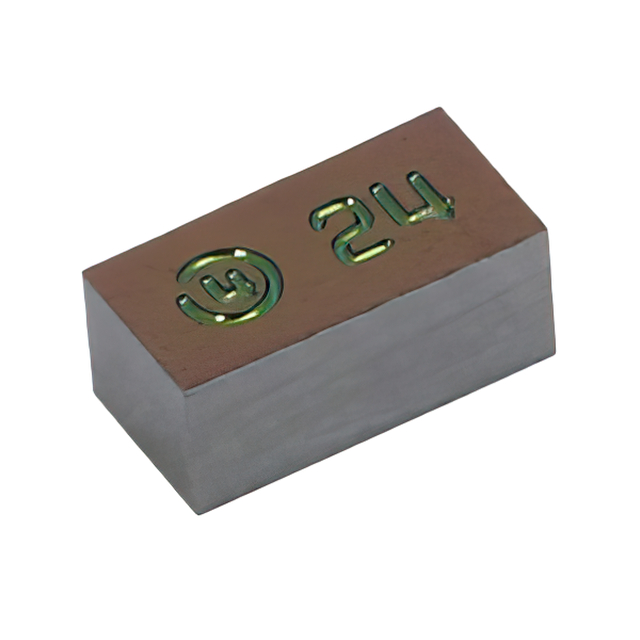

| Package / Case | 0201 (0603 Metric) |
| Package Name | CLP0603 |
| Power - Peak Pulse | 65 W |
| Power Line Protection | No |
| Qualification | AEC-Q101 |
| Type | Zener |
| Voltage - Breakdown (Min) | 15.8 V |
| Voltage - Clamping (Max) | 26 V |
| Voltage - Reverse Standoff (Max) | 15 V |
